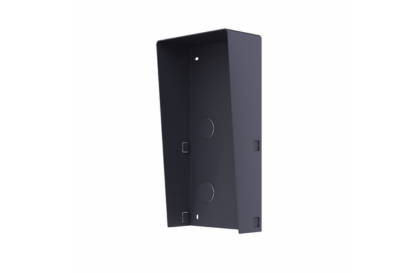

Hikvision DS-KABD8003-RS2 2nd Gen Door Shroud to suit DS-KD-ACW2

Rain Shield of Module Door Station

• Convenient design available for the 2 module surface mounting of the modular door station (DS-KD8003-IME1 or DS-KD8003-IME2)
• Material: SECC

General

• Working Temperature: -40° C to +60° C (-40° F to 140° F)

• Working Humidity: 10% to 95%

• Weight: 500 g

• Dimensions (W × H × D): 224 × 116.4 × 58 mm (8.82" × 4.58" × 2.28")

• Installation:

  1. Paste the installation sticker 1 onto the wall. Ensure it is leveled using a gradienter.
  2. Drill 4 holes aligned with the screw holes on the sticker. Recommended hole size is 6 mm (diameter) × 25 mm (depth).
  3. Remove the sticker and insert expansion sleeves into the screw holes. Fix the mounting frame and protective shield onto the wall using 4 expansion bolts.
  4. Thread the module-connecting line through the thread hole of the frame.
  5. Pass the main unit connecting lines through the thread hole to the upper grid.
  6. Connect the cables and module-connecting line to the corresponding interfaces of the main unit, then place the main unit into the upper grid.
  7. Connect the other end of the module-connecting line to the input interface of the sub-module.
  8. Organize the lines with cable ties provided in the package.
  9. Insert the modules into the frame after wiring, ensuring the main unit is placed in the top grid.
  10. Use the hexagon wrench in the package to secure the cover onto the frame.

• Material: SECC
