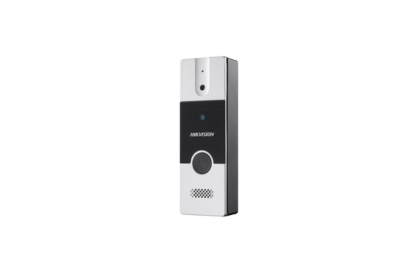

Hikvision DS-KB2411T-IM Analog Four Wire Door Station

Analog Four Wire Door Station

• 4-wire plug & play analog door station
• 2 MP Pinhole camera with self-adaptive IR supplement
• One-touch calling design for easier calls
• Supports two door stations simultaneously in the intercom system
• Convenient installation and easy operation

Video Parameters

• Camera: 1/2.7" CMOS
• Resolution: 1920 × 1080
  • Stream Resolution: 960 × 576
• FOV: Horizontal: 66.2°, Vertical: 37.2°
• Video Frame Rate: PAL: 25 fps

Audio Parameters

• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in loudspeaker

Device Interfaces

• Four-Wire Interface:
  • 1 four-wire interface
    • 1-ch video input
    • 1-ch audio input/output
    • 1-ch power supply
    • 1-ch grounding
• I/O Output: 1 relay output

General Specifications

• Power Supply: 12 VDC
• Power Consumption: Max. 5W
• Working Temperature: -10° C to +55° C (14° F to 131° F)
• Working Humidity: 10% to 90%
• Dimensions: 135.14 mm × 49.6 mm × 41.93 mm (5.32" × 1.95" × 1.65")
• Material: Aluminum alloy
