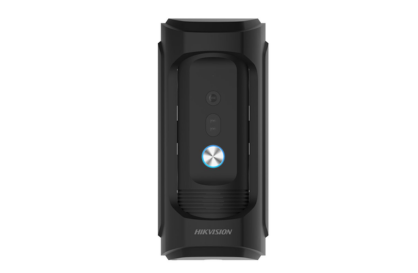

Hikvision DS-KB8113-IME1 Gen 2 IP Video Intercom Vandal-Resistant Door Station

Vandal-Resistant Doorbell

• 2MP HD Camera with IR supplement providing excellent image quality
• Supports standard POE power supply
• Supports mechanical doorbell, easier to call
• Convenient Hik-Connect APP Mobile Control: Receive calls, open the door and live view remotely
• Supports web configration
• Higher protection level: IK09 & IP65



System Parameters

• Operating System: Embedded Linux operation system
• ROM: 32 MB
• RAM: 256 MB
• CPU: Embedded MCU Processor

Display Parameters

• Screen Size: /
• Operation Method: /
• Type: /
• Resolution: /

Video Parameters

• Lens: 1
• Resolution:
  • Main stream: 1920 × 1080
  • Sub stream: 640 × 480
• FOV:
  • Horizontal: 95°
  • Vertical: 54°
• WDR: Support
• Supplement Light: IR supplement
• Video Compression Standard: H.264

Audio Parameters

• Audio Compression Standard: G.711 U, G.711 A
• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in loudspeaker (More than 80 dB within 30 cm)
• Audio Compression Bitrate: 64 Kbps
• Audio Quality: Noise suppression and echo cancellation
• Volume Adjustment: Adjustable

Capacity

• Face Capacity: /
• Card Capacity: /
• Linked Indoor Station Capacity: 1
• Sub Door Station Capacity: 16

Network Parameters

• Network Protocol: TCP/IP, RSTP, SIP
• Wired Network: 10/100 Mbps self-adaptive Ethernet
• Wi-Fi Standard: /
• Bluetooth Version: /
• 3G/4G Standard: /

Device Interfaces

• Alarm Input: 1
• Debugging Port: 1
• Network Interface: 1
• Lock Control: 1 (1 relay, max to 30 VDC, 2 A)
• Power Interface: 1

General

• Button: 1
• Power Supply: IEEE802.3af, standard PoE or 12 VDC
• Installation: Surface mounting
• Power Consumption: < 10 W
• Working Temperature: -30° C to +50° C (-22° F to 122° F)
• Weight:
  • Gross Weight: 0.992 kg
  • Net Weight: 0.795 kg
• Working Humidity: 10% to 90%
• Protective Level: IP65, IK09
• Dimensions (L x W x H): 161.85 mm × 74.13 mm × 53.2 mm (6.37" × 2.92" × 2.09")
• Battery: /
• Language: English, French, Portuguese, Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak, Brazilian Portuguese
• Application Environment: Outdoor and Indoor
