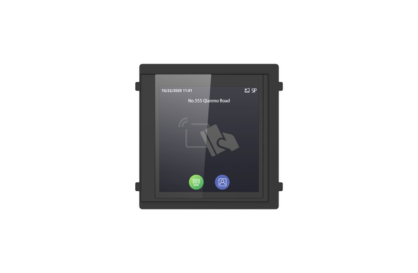

Hikvision DS-KD-TDM 2nd Gen Intercom, Touch Display Module

Touch Display Module with M1 Card Reader

• Touch display module with M1 card reader of modular door station
• 4-inch touch screen with rich information display: Dial number, pin code unlock, contact list, advertisement
• Store up to 2000 contacts
• IP65 and IK08 higher protection level
• Support multiple languages

System Parameters

Operation System:

• Linux

ROM:

• 32 MB

RAM:

• 128 MB

Display Parameters

Screen Size:

• 4-inch

Type:

• IPS

Resolution:

• 480 × 480

Brightness:

• Adjustable, Max. 500 cd/m²

Audio Parameters

Audio Input:

• N/A

Audio Compression Standard:

• N/A

Audio Output:

• 1 buzzer

Audio Quality:

• N/A

Volume Adjustment:

• N/A

Loudspeaker Consumption:

• N/A

Network Parameters

Wireless Network:

• AP mode

Authentication:

• Card Reading Frequency: 13.56 MHz

Card Reading Distance:

• 2 cm

Card Type:

• M1 card

Device Interfaces

TF Card:

• Reserved

DIP Switch:

• 8 bits

Two-Wire Cascading Interface:

• 2

General

Installation:

• Flush mounting, surface mounting

Protective Level:

• IP65, IK8

Working Temperature:

• -20 °C to 60 °C (-4 °F to 140 °F)

Working Humidity:

• 10% to 95% (non-condensing)

Dimensions (W × H × D):

• 100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38")

Power Supply:

• 12 VDC, supplied by the main module

Power Consumption:

• ≤ 4 W

Language:

• English, French, Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek
