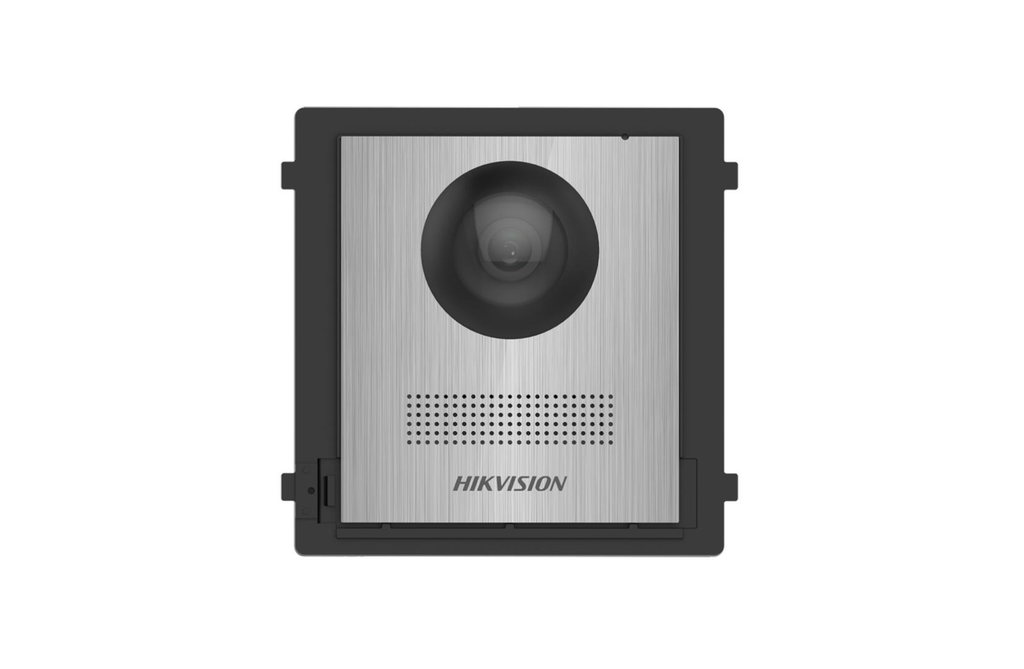

Hikvision DS-KD8003-IME1/NS KD8 Series Pro Modular Door Station

• Modular door station Main unit, needs mounting bracket
• 2 MP HD Camera, Fish eye, IR Supplement
• 2 lock relays, 4-ch alarm input
• IP65, 12 VDC or standard POE
• Video intercom to indoor station and main station
• Datasheet

System Parameters

• Operating System: Embedded Linux

• ROM: 16 MB

• RAM: 256 MB

• CPU: Embedded MCU Processor

Video Parameters

• Lens: Low Illumination 2 MP HD IR Camera

• Resolution:

  • Main Stream: 1920 × 1080

  • Sub Stream: 720 × 480

• Field of View (FOV): Horizontal 180°, Vertical 96°

• WDR: Supported

• Supplement Light: IR Supplement

• Video Compression Standard: H.264

Audio Parameters

• Audio Compression Standard: G.711 U

• Audio Input: Built-in omnidirectional microphone

• Audio Output: Built-in loudspeaker (≥ 85 dB within 20 cm)

• Audio Compression Bitrate: 64 Kbps

• Audio Quality: Noise suppression and echo cancellation

• Volume Adjustment: Adjustable

Capacity

• Linked Network Camera Capacity: 100

• Holiday Group: 16

Network Parameters

• Communication Protocol: TCP/IP, RTSP

• Wired Network: Supported

Device Interfaces

• Alarm Input: 4

• Network Interface: 1 × 10/100 Mbps self-adaptive Ethernet

• TAMPER: 1

• Exit Button: 2

• RS-485: 1

• Alarm Output: 2

• Lock Control: 2

• Door Contact Input: 2

• Power Interface: 1

General

• Installation: Flush mounting, surface mounting

• Weight:

  • Without Package: 415 g

  • With Package: 625 g

• Protective Level: IP65

• Working Temperature: –40 °C to +55 °C (–40 °F to 131 °F)

• Working Humidity: 10% to 95%

• Dimensions: 98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")

• Power Supply: IEEE802.3af standard PoE; 12 VDC, 1 A

• Application Environment: Outdoor

• Power Consumption: ≤ 10 W

• Language Support: English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak
