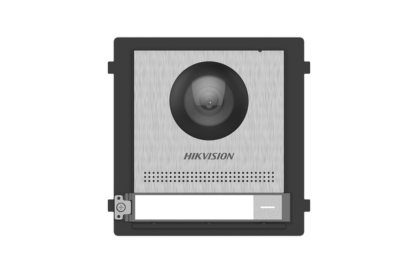

Hikvision DS-KD8003-IME1/S 2nd Gen IP Intercom Door Station 12VDC, POE, Stainless Steel

KD8 Series Pro Modular Door Station

• Modular door station Main unit, needs mounting bracket
• 2MP HD Camera, Fish eye, IR Supplement
• 1 Call physical Button, 2 lock relays, 4-ch alarm input
• IP65, 12 VDC or standard POE
• Video intercom to indoor station and main station



Display Parameters

• Size: /
• Operation Method: /
• Type: /

Video Parameters

• Supplement Light: IR supplement
• Lens: Low Illumination 2 MP HD IR Camera
• FOV: Horizontal: 180°, Vertical: 96°
• Pixel:
  • Main stream: 1920 × 1080
  • Sub stream: 720 × 480

Audio Parameters

• Audio Quality: Noise suppression and echo cancellation

Capacity

• Linked Indoor Station: 500
• Sub Door Station Capacity: 16

Network Parameters

• Communication Protocol: TCP/IP, RTSP
• Wired Network: Support
• Wi-Fi: /
• Bluetooth: /

Device Interfaces

• Network Interface: 1 10/100M self-adaptive Ethernet
• Exit Button: 2
• Lock Control: 2
• Door Contact Input: 2
• Power Interface: 1

General

• Button: /
• Installation: Flush mounting, surface mounting
• Indicator: /

Weight

• Without package: 415 g
• With package: 625 g

Protective Level

• IP65

Working Temperature

• -40° C to +55° C (-40° F to 131° F)

Working Humidity

• 10% to 95%

Dimensions

• 98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")

Battery

• /

Power Supply

• IEEE802.3af, standard PoE
• 12 VDC, 1 A

Application Environment

• Outdoor

Power Consumption

• 4 W

Language

• English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak
