Description

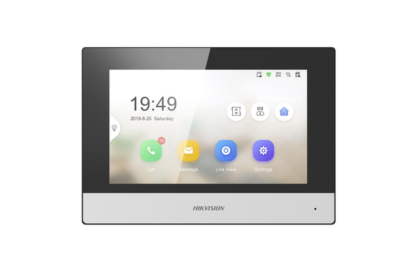

KH6 Series IP-Based Indoor Station
- 7-inch TFT touch screen with 1024 × 600 resolution
- Convenient Hik-Connect APP Mobile Control
- Receive calls, open the door and live view remotely
- Easy to use without PC
- Easy wizard for quick set up
- Configure the whole system on one touch screen
- Live view of the door station and cameras in public areas
- Support voice messages when no response from the indoor station
- Receive alarms by linkage with a alarm system and notify the center to handle in time
- Elevator access control
System Parameters
- Operating System: Linux
- ROM: 32 MB
- RAM: 128 MB
- Processor: Embedded high-performance processor
Display Parameters
- Screen Size: 7-inch
- Operation Method: Capacitive touch screen
- Type: Colorful TFT
- Resolution: 1024 × 600
Video Parameters
- Lens: Not supported
- Resolution: Not supported
- FOV: Not supported
- Wide Dynamic Range (WDR): Not supported
- Video Compression Standard: Not supported
- Focal Length: Not supported
Audio Parameters
- Audio Input: 1 built-in omnidirectional microphone
- Audio Compression Standard: G.711U/G.711A
- Audio Output: 1 built-in loudspeaker
- Audio Compression Bitrate: 64 Kbps
- Audio Quality: Noise suppression and echo cancellation
- Volume Adjustment: Adjustable
Capacity
-
Message Capacity:
- With TF Card: 200 captured pictures, 200 alarm records
- Without TF Card: 2 MB RAM for picture storage, number of pictures depends on size, 200 alarm records
- Notice Capacity: 200
- Linked Indoor Extensions Capacity: 16
- Linked Doorphone Capacity: 17
- Linked Network Camera Capacity: 16
Network Parameters
- Network Protocol: TCP/IP, SIP, RTSP
- Wi-Fi: Not supported
- Bluetooth: Not supported
- 3G/4G: Not supported
- Zigbee: Not supported
Device Interfaces
- Alarm Input: 8
- Network Interface: 1 RJ-45 10/100 Mbps self-adaptive
- TAMPER: Not supported
- RS-485: Not supported
- USB: Not supported
- TF Card: Supports up to 128 GB
- Alarm Output: Not supported
- Lock Control: 2 relays, Max. 30 VDC 0.3 A
General Specifications
- Button: Not specified
- Installation: Surface mounting
- Indicator: Not specified
-
Weight:
- Net Weight: 350 g
- Gross Weight: 675 g
- Protective Level: Not specified
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90% (non-condensing)
- Dimensions (W × H × D): 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
- Battery: Not specified
- Application Environment: Indoor
- Power Consumption: ≤ 5 W
- Language Support: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian
