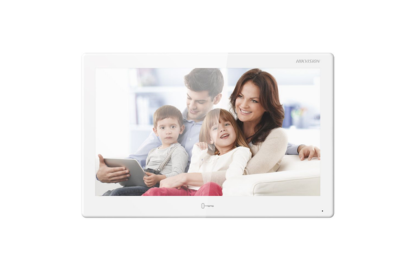

Hikvision DS-KH9510-WTE1 2nd Gen IP Intercom, 10″ Android Control Room Station White

All-in-one Indoor Station

• 10.1-inch colorful touch screen with 1024 × 600 resolution
• Built-in Android System
• Supports Android APP installation
• Support for three-party software integration
• Built-in Hik-Connect APP
• For all-in-one management of Hikvision’s devices on tablet




System Parameters

• Operating System: Android 10.1
• ROM: 8 GB
• RAM: 2 GB
• Processor: Embedded high-performance processor

Display Parameters

• Screen Size: 10.1-inch
• Operation Method: Capacitive touch screen
• Type: Colorful IPS
• Resolution: 1024 × 600

Video Parameters

• Lens: /
• Resolution: /
• FOV: /
• Wide Dynamic Range (WDR): /
• Video Compression Standard: /
• Focal Length: /

Audio Parameters

• Audio Input: 1 built-in omnidirectional microphone
• Audio Compression Standard: G.711U, G.711A
• Audio Output: 1 built-in loudspeaker
• Audio Compression Bitrate: 64 Kbps
• Audio Quality: Noise suppression and echo cancellation
• Volume Adjustment: Adjustable

Capacity

• Message Capacity: 200 captured pictures, 200 alarm records
• Notice Capacity: 200
• Linked Indoor Extensions Capacity: 16
• Linked Network Camera Capacity: 16
• Linked Doorphone Capacity: 17

Network Parameters

• Network Protocol: TCP/IP, SIP, RTSP
• Wi-Fi: 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
• Bluetooth: /
• 3G/4G: /
• Zigbee: /

Device Interfaces

• Alarm Input: 8
• Network Interface: 1 RJ-45 10/100 Mbps self-adaptive
• TAMPER: /
• RS-485: 1 RS-485 (Half duplex)
• TF Card: Supports TF card, up to 128 GB
• Alarm Output: 1
• Lock Control: 1 relay, Max. 30 VDC 0.3 A, and 1 high/low level relay (3.3 V/0V)

General

• Button: /
• Installation: Surface mounting
• Indicator: /
• Weight:
  • Net weight: 875 g
  • Gross weight: 1060 g
• Protective Level: /
• Working Temperature: -10 °C to 50 °C (14 °F to 122 °F)
• Working Humidity: 10% to 90% (non-condensing)
• Dimensions (W × H × D): 254 mm × 166 mm × 26.65 mm (10.0" × 6.54" × 1.05")
• Battery: /
• Power Supply: 12 VDC, 1 A, IEEE802.3af, standard PoE
• Application Environment: Indoor
• Power Consumption: ≤ 12 W
• Language: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Traditional Chinese, Vietnamese, Hebrew, Latvian, Lithuanian, Brazilian Portuguese, Ukrainian, Mongolian
