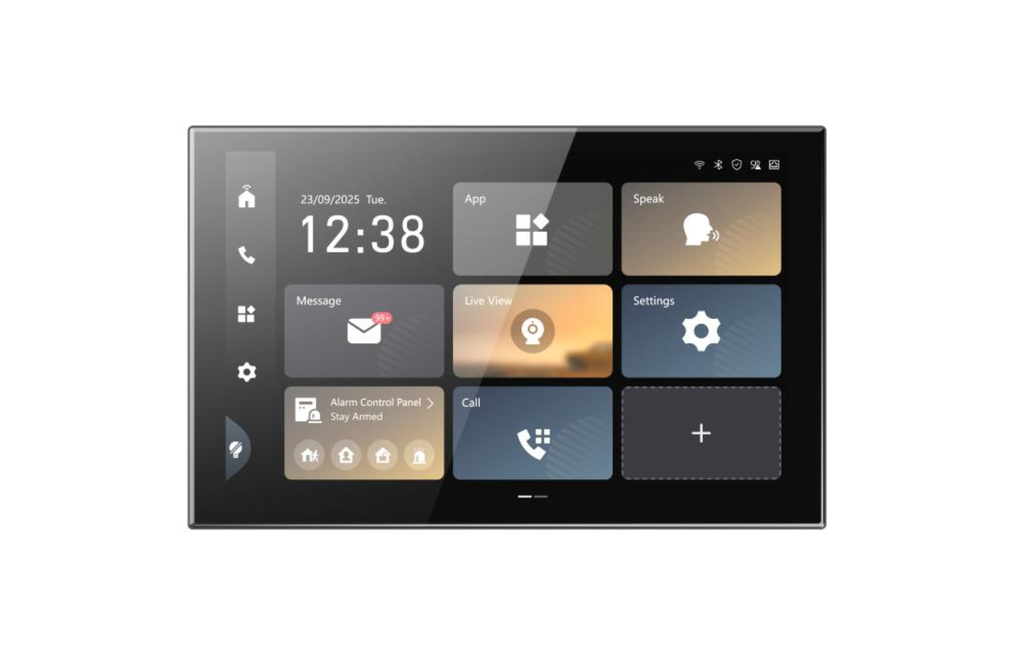

Hikvision DS-KH9570-WTE1 9 Series 10.1" Android Indoor Station

9 Series 10.1" Android Indoor Station

Advanced Android-based indoor station with unified smart security management, ultra-smooth operation, and Super HD clarity for premium residential and commercial intercom systems.

---

Key Features

• Integrated smart security management on a single screen

• Android 14 operating system

• 4-core embedded high-performance processor

• 4 GB RAM + 8 GB ROM

• 10.1" IPS capacitive touch display

• 1920 × 1200 resolution (Super HD)

• Dual built-in microphones and dual loudspeakers

• Noise suppression and echo cancellation

• Wi-Fi 6 (2.4 GHz & 5 GHz)

• BLE 5.0 support

• Standard PoE (IEEE 802.3at)

• Datasheet

---

System Parameters

• Operating System: Android 14

• Processor: Embedded high-performance processor

• RAM: 4 GB

• ROM: 8 GB

---

Display

• Screen Size: 10.1-inch

• Display Type: Colorful IPS

• Operation Method: Capacitive touch screen

• Resolution: 1920 × 1200

---

Audio

• Audio Input: 2 built-in omnidirectional microphones

• Audio Output: 2 built-in loudspeakers

• Audio Compression: G.711A, G.711U, G.722.1, G726, Opus, AAC, AAC_LD

• Audio Bitrate: 64 Kbps

• Audio Quality: Noise suppression and echo cancellation

• Volume Adjustment: Adjustable

---

Capacity

• Linked Doorphone Capacity: 17

• Linked Indoor Extensions Capacity: 15

• Linked Network Camera Capacity: 16

• Message Storage:

  • 200 captured pictures

  • 200 alarm records

  • 200 unlock records

  • 200 tamper records

---

Network

• Wi-Fi: Wi-Fi 6 (2.4 GHz & 5 GHz)

• Bluetooth: BLE 5.0

• Network Interface: 1 × RJ-45 (10/100 Mbps self-adaptive)

• Network Protocols:
  IPv4, SIP, HTTP, HTTPS, DNS, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
  SIP v1 (RFC2543), SIP v2 (RFC3261)
  DTMF (SIP Info)
  SADP, ISAPI, ONVIF

---

Interfaces

• Alarm Input: 8 (Reserved)

• RS-485: 1 × RS-485 (Half duplex)

• TF Card Slot: Supports up to 256 GB

• Power Input: 12 VDC

• Power Output: 12 VDC, 200 mA

• Relay: 1 (Reserved), Max. 30VDC 1A

---

General

• Installation: Surface mounting

• Proximity Sensor:

  • Distance: 50 cm

  • Horizontal: 25°

  • Vertical: 25°

• Power Supply:

  • 12 VDC, 2.5 A

  • IEEE 802.3at (Standard PoE)

• Power Consumption: ≤ 24 W

• Working Temperature: -10 °C to 50 °C

• Working Humidity: 10% to 90% (non-condensing)

• Application Environment: Indoor

• Weight:

  • Without package: 545 g

  • With package: 639 g

• Dimensions (W × H × D):
  246.58 mm × 155.76 mm × 23.62 mm
