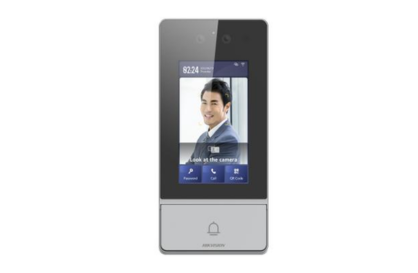

Hikvision DS-KV9503-WBE1 Metal Vandal-resistant Facial Recognition IP Villa Door Station

Metal Vandal-resistant Facial Recognition IP Villa Door Station

• Modern industrial design
• 4.3-inch colorful LCD screen with 800 × 480 resolution
• One-touch Physical Button For easier calls
• Standard PoE power supply
• IK08 & IP65 higher protection level
• User- friendly interaction
• Optional face recognition function for privacy concerns
• Customized advertising interface
• Various application scenarios: Villa & Apartment & Office
• Multiple authentication methods: Face, Pin Code, Card, QR Code, Bluetooth (Reserved)

System Parameters

Operating System

• Operating System: Linux

Storage

• ROM: 4 GB
• RAM: 1 GB

Processor

• Processor: Embedded high-performance processor

Display Parameters

• Screen Size: 4.3-inch
• Operation Method: Capacitive touch screen
• Type: IPS
• Resolution: 800 × 480
• Brightness: 425 cd/m²

Video Parameters

• Lens: 2
• Resolution: 2 × 2 MP
• FOV: Horizontal: 88°, Vertical: 44°
• Wide Dynamic Range (WDR): Support 120 dB
• Supplement Light: IR light, up to 3 m
• Video Compression Standard:
  • Main stream and sub stream: H.264
  • Third stream: H.265

Audio Parameters

• Audio Input: 1 built-in omnidirectional microphone
• Audio Compression Standard: G.711 U, G.711 A
• Audio Output: 1 built-in loudspeaker
• Audio Compression Bitrate: 64 Kbps
• Audio Quality: Noise suppression and echo cancellation
• Volume Adjustment: Adjustable

Capacity

• User Capacity: 20000
• Face Capacity: 10000
• Fingerprint Capacity: /
• Card Capacity: 100000
• Message Capacity: /
• Linked Indoor Station Capacity: 500
• Sub Door Station Capacity: 16

Network Parameters

• Network Protocol: TCP/IP, RTSP
• Wi-Fi: IEEE802.11b, IEEE802.11g, IEEE802.11n
• Bluetooth: Reserved
• 3G/4G: /
• Authentication: Card Reading Frequency: 13.56 MHz
• Face Recognition Distance: 0.3 to 2 m
• Face Recognition Accuracy Rate: ≥ 99%
• Face Recognition Duration: ＜ 0.2 s per person

Device Interfaces

• Alarm Input: 4 (2 exit buttons and 2 door contacts by default)
• Network Interface: 1 RJ-45, 10/100 Mbps self-adaptive
• TAMPER: 1
• Exit Button: 2
• RS-485: 1
• USB: /
• Wiegand: /
• TF Card: Reserved
• Lock Control: 2 relays, Max. 30 VDC 2 A (lock 2 needs secure module)
• Door Contact Input: 2

General

• Button: 1 physical button
• Installation: Surface mounting
• Indicator: /
• Weight:
  • Net Weight: 0.405 kg
  • Gross Weight: 0.752 kg
• Protective Level: IP65, IK08
• Working Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Working Humidity: 10% to 90% (non-condensing)
• Dimensions: 182 mm × 85 mm × 26 mm (7.16" × 3.34" × 1.01")
• Battery: /
• Power Supply: 12 VDC, 1.5 A, IEEE802.3af, Standard PoE
• Application Environment: Outdoor
• Power Consumption: ≤ 6 W
• Language: English, French, Brazilian Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek
