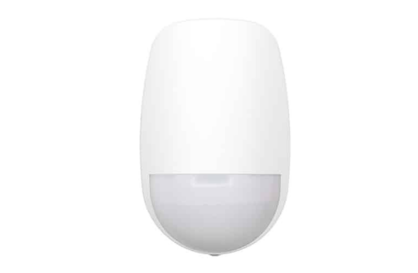

Wired Dual-tech Detector
-
Detection Range: 12m / 85.9°
-
Up to 30kg pey immunity
-
Automatic sensitivity
-
Digital temperature compensation
-
52 zones of 3D optics including creep-zone protection, full coverage without dead angle
-
selectable EOL resistors for alarm and tamper-proof wiring
-
Sealed optics preventing insect interference
-
24Ghz microwave
-
9 to 16 V wide voltage adaptation with polarity reverse connection protection
-
Wall/Ceiling-mounting brackets available (sold separately)
-
IFT technology prevents false alarms
Detection Performance
- Detection Method: Passive Infrared; Microwave
- Detection Range: 12m
- Detection Angle: 85.9°
- Detection Zones: 52
- Detectable Speed: 0.3～2m/s
- Sensitivity: Auto; Pet
- Pet Immunity: 30Kg
- White Light Filter: 6500lux
- Microwave Frequency: 24GHz (24.15～24.25GHz)
Digital Features
- Digital Temperature Compensation: Support
- Creep Zone Protection: Support
- Digital Processing: Support
- Sealed Optics: Support
Tamper Protection
Interface
- Alarm Output: Normally Closed
- LED Indicator: Green (PIR), Orange (Microwave), Blue (Alarm)
Transmission
- Transmission Method: Wired
Electrical Characteristics
- Power Supply: 9 to 16 VDC
- Typical Voltage: 12 VDC
- Power Consumption:
- Maximum current: 17mA @ 12VDC
- Quiescent current: 17mA @ 12VDC
General
- Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity: 10% to 90%
- Dimension (WxHxD): 65.7 mm (2.59 ") × 103.8 mm (4.09 ") × 45.5 mm (1.79 ")
- Weight: 99g (3.5 oz)
- Mounting Height: 1.8 m to 2.4 m
- Mounting Method: Wall
- Application Scenario: Indoor
- Bracket: Optional wall & ceiling accessory
