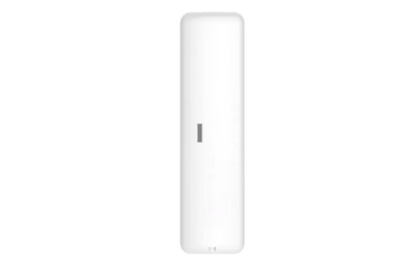

Hikvision DS-PDSK-P AX Hybrid Series Wired Shock Detector

Wired Shock Detector

• Reliable perimeter protection offering early detection
• Adjustable sensitivity with gross attack override
• Advanced Digital Background-Noise Filter

Detection Performance

• Detection Method: Shock Sensor
• Detection Range: Up to 2.5m Radius
• Sensitivity: Potentiometer Adjustment

Feature

• Digital Processing: Support
• Tamper Protection: Front

Interface

• Alarm Output: Normally Closed
• LED Indicator: Blue (Alarm)

Transmission

• Transmission Method: Wired

Electrical Characteristics

• Power Supply: 9 - 16 VDC
• Typical Voltage: 12 V
• Power Consumption:
  • Maximum current: 18mA @ 12VDC
  • Quiescent current: 20mA @ 12VDC

General

• Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity: 10% to 90%
• Dimension (WxHxD): 30 mm x 108 mm x 22 mm
• Weight: 37.5 g
• Application Scenario: Indoor
