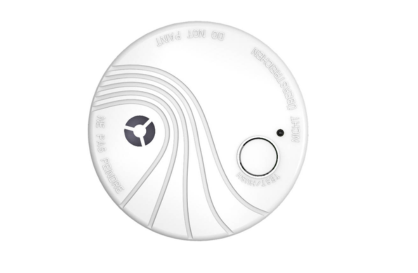

Hikvision DS-PDSMK-S-WB Ax Pro Wireless Photoelectric Smoke Sensor Detector

Wireless Photoelectric Smoke Detector

• High quality chamber with photoelectric sensor
• 10 years battery life

Detection Performance

• Detection Method: Chamber With Photoelectric Sensor

Feature

• Environment Temperature Indicator: Support
• Signal Strength Indicator: Support

Interface

• Power Switch: Power Up Enrolling
• LED Indicator: Red (Alarm)
• Buzzer: ≥ 85dB @ 3 m

Transmission

• Transmission Method: Two-Way RF Wireless
• Transmission Frequency: 433MHz
• Transmission Security: AES-128 Encryption
• Transmission Range (Free Space): 800m
• Enrolling Method: Power up; Remote ID; QR Code

Electrical Characteristics

• Standard Battery Life: Up to 10 years (standby time)
• Power Supply: Battery Powered
• Battery Type: Non Replaceable CR17450 x 1
• Typical Voltage: 3V

General

• Operation Temperature: -10 °C to 60 °C (14 °F to 140 °F)
• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity: 10% to 90%
• Dimension (WxHxD): φ102 × 35mm
• Weight: 125g
• Mounting Method: Ceiling
• Application Scenario: Indoor
