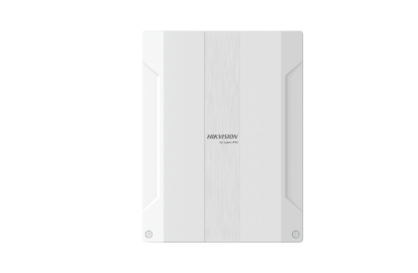

Hikvision DS-PHA64-LP/NP AX Hybrid PRO Hardwired Alarm Controller, 8-64 Zones, 45 Users, 8 Areas, 4-64 Outputs

AX HYBRID PRO

• Hybrid system: 8 on-board zones and 56 wired/wireless zones expandable；4 on-board outputs（2 relay outputs & 2 I/O outputs） and 60 wired/wireless outputs expandable
• Dual-path communication of alarm events and other signals over LAN, PSTN, Wi-Fi, GPRS or 3G/4G utilizing a main and backup channel with configurable priority
• 4-ch onboard IP Camera video verification, supports video recording (5s pre-alarm + 2s post-alarm, or 2s pre-alarm + 5s post-alarm) for verification to the alarm receiving email or mobile client
• Supports arming/disarming via keypad, keyfob, mobile client, iVMS-4200, SMS and tag
• Pushes alarm notification via messages and Hik-Connect
• Supports ISAPI, Cloud P2P, ISUP, CSV-IP and DC-09 protocol
• Supports 1 Speed-X BUS

Software Features

• Zones: 64 (8 on-board zones, max 8 wired PIRCAM)
• Areas: 32
• Users:
  • Installer: 1
  • Administrator: 1
  • Operator: 62
• SMS Notification: Support (with GPRS/3G/4G module)
• Onboard Video Clips: 4
• ARC Protocol:
  • ISAPI: Supports iVMS-4200 client software and web client
  • Cloud P2P: Supports cloud P2P privacy protocol
  • DC-09: ARC accessible (ADM-CID/SIA-DCS)
  • CSV-IP: Supports CSV-IP
  • ISUP: Supports ISUP 5.0
• Programming Tools: Web/iVMS-4200/Hik-ProConnect/Keypad
• Firmware Upgrade: Web/iVMS-4200/Hik-ProConnect/Hik-ProConnect
• End of Line Resistance: Support 2.2K, 5.6K, 8.2K

Hardware Features

• Alarm Input: 64 (including 8 on-board zones)
• Alarm Output: 64 (including 2 on-board relay outputs and 2 on-board I/O outputs)
• Power Output: 12V 1.5A
• 3/4G On Board: Optional
• GPRS On Board: Optional
• Wi-Fi: 802.11b/g/n (2.4GHz)
• Bus: 1 Speed-X bus
• Sounder Output: 1 wired on-board sounder output
• Tamper-Proof:
  • 1 switch to detect removal from mounting
  • 1 switch to detect front cover open
• Network Interface: 1 RJ45 10M/100M Ethernet interface

Electrical Characteristics

• Power Interface: 12 - 15V DC
• Power Consumption:
  • 220V power supply:
    • With an alarm: 2A, 32W
    • Without an alarm: 250mA, 4W
  • 13.5V battery supply:
    • With an alarm: 1.7A, 25W
    • Without an alarm: 200mA, 2.7W
• Battery Type: Lead acid battery (12V 7Ah, battery is not included by default)
• Storage Temperature: -10°C to 40°C
• Battery Life Span: Up to 36 hours

Display

• Indicator: 4 on-board LEDs
  • 1 AC power LED indicator (Green)
  • 1 System status LED indicator (Green/Red)
  • 1 PSTN status LED indicator (Green/Red)
  • 1 Mobile communication status LED indicator (Green/Red)

General

• Operation Temperature: -10℃ to 40℃
• Operation Humidity: 10% to 90%
• Shell Material: Plastic
• Color: White
• Dimension (WxHxD): 261 mm × 199 mm × 86.4 mm
• Weight: 997 g

Device Management

• Tag: 64
• Keyfob: 64
• Keypad: 8
• Wireless Sounder: 16
