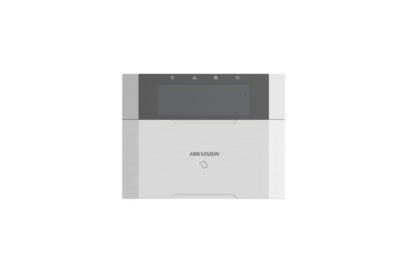

Hikvision DS-PK1-LRT-HWB LCD Keypad with Card Reader to suit Hardwired Alarm Controller

Wired LCD Keypad

• LCD screen display
• Supports one-touch arm（Arming without password）
• Supports Fire/Panic/Medical alarm key
• Supports company name, phone number, time display
• Supports 2 on-board alarm inputs and 1 on-board alarm output
• Supports maximum 64 keyfobs

Hardware Features

• Tag Reader Built-in: 1 Built-in Tag Reader
• Serial Port: 1 TTL Serial Port
• Tamper-Proof: 1 Back-cover Tamper-switch (Will be damaged when tamper triggered)
• Buzzer: 1 On-board Buzzer
• Function Key: 8 Function keys: Query, Away Arm, Stay Arm, Disarm, Alarm Output, Project, Left, Right
• RS-485: 1 Speed-X bus
• Alarm Input: 2 On-board Alarm inputs
• Alarm Output: 1 On-board Alarm output

Electrical Characteristics

• Power Supply: 10.2 to 14.4 VDC
• Typical Voltage: 12 VDC
• Power Consumption:
  • Maximum current: 150mA @12VDC
  • Quiescent current: 72mA @12VDC

Wireless Transmission

• RF Frequency: 433MHz

Display

• Numeric Key: 0 to 9, *, #
• Display Screen: LCD Screen
• Indicator: 4 indicators and 1 backlight:
  • Power: Green
  • Faults: Fault-Orange / Alert-Flashing orange / Find me mode-flashing green
  • Armed: Blue
  • Alarm: Red
  • Keypad button backlight: White

General

• Dimension (WxHxD): 150mm x 115mm x 28mm
• Color: White
• Operation Temperature: -10 °C to + 55 °C (14 °F to 131 °F)
• Operation Humidity: 10%～90%

Device Management

• Keyfob: 64
