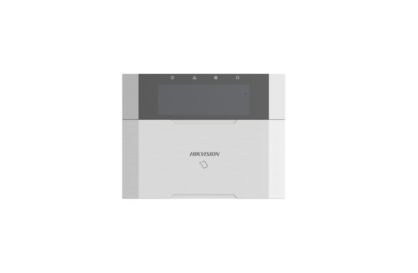

Wired LCD Keypad
-
LCD screen display
-
Supports one-touch arm（Arming without password）
-
Supports Fire/Panic/Medical alarm key
-
Supports company name, phone number, time display
-
Supports 2 on-board alarm inputs and 1 on-board alarm output
-
Supports maximum 64 keyfobs
Hardware Features
-
Tag Reader Built-in: 1 Built-in Tag Reader
-
Serial Port: 1 TTL Serial Port
-
Tamper-Proof: 1 Back-cover Tamper-switch (Will be damaged when tamper triggered)
-
Buzzer: 1 On-board Buzzer
-
Function Key: 8 Function keys: Query, Away Arm, Stay Arm, Disarm, Alarm Output, Project, Left, Right
-
RS-485: 1 Speed-X bus
-
Alarm Input: 2 On-board Alarm inputs
-
Alarm Output: 1 On-board Alarm output
Electrical Characteristics
-
Power Supply: 10.2 to 14.4 VDC
-
Typical Voltage: 12 VDC
-
Power Consumption:
- Maximum current: 150mA @12VDC
- Quiescent current: 72mA @12VDC
Wireless Transmission
Display
-
Numeric Key: 0 to 9, *, #
-
Display Screen: LCD Screen
-
Indicator: 4 indicators and 1 backlight:
- Power: Green
- Faults: Fault-Orange / Alert-Flashing orange / Find me mode-flashing green
- Armed: Blue
- Alarm: Red
- Keypad button backlight: White
General
-
Dimension (WxHxD): 150mm x 115mm x 28mm
-
Color: White
-
Operation Temperature: -10 °C to + 55 °C (14 °F to 131 °F)
-
Operation Humidity: 10%～90%
