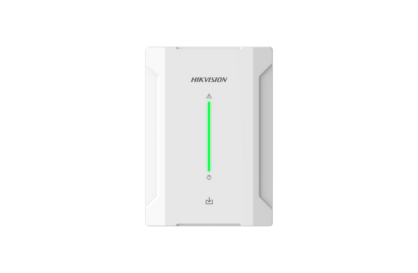

Hikvision DS-PM1-I8O2-H Ax Hybrid Pro RS485 wired Input Expander

Wired Input Expander（Cascade）

• 8 on-board wired zones
• Support 3EOL connection(Alarm: 1KΩ; Tamper: 1KΩ; Fault: 2.2KΩ)
• Support zone alarm, tamper, masking, fault, short detection
• 1 power output for wired detectors
• 2 Speed-X bus, supporting wired input expander cascade mode

Hardware Features

• Alarm Input: 8
• I/O Output: 2 (connect to relay module)
• Bus:
  • 2 × Speed-X bus: 1 input for control panel connection and 1 output for expander cascading
• Tamper-Proof: Support (front and rear)

Electrical Characteristics

• Power Supply: 11 to 24 VDC
• Typical Voltage: 12 VDC
• Power Consumption:
  • Maximum current: 119 mA @ 12 VDC
  • Quiescent current: 45 mA @ 12 VDC
• Output Voltage: 9 to 12 VDC
• Output Current: Maximum 500 mA

Display

• LED Indicator:
  • LED indicators: 1 for power, 1 for fault

General

• Operation Temperature: -10°C to 40°C
• Operation Humidity: 10% to 90%
• Shell Material: Plastic
• Dimension (WxHxD): 110 mm × 155 mm × 32 mm
• Weight: 252.5 g
