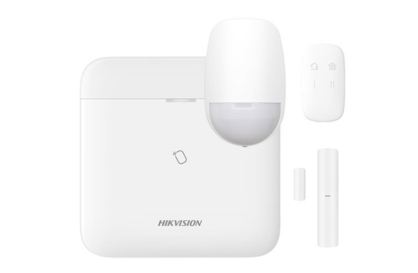

Hikvision DS-PWA96-Kit-WB AX PRO Alarm Security Kit – Control Panel, Reed, PIR + Remote

AX PRO Kit (433MHz)

• · DS-PWA96-M-WB x 1
• · DS-PKF1-WB x 1
• · DS-PDP15P-EG2-WB x 1
• · DS-PDMC-EG2-WB x 1



Software Features

• Tag: 48
• Area: 32
• Zones: 96 (up to 48 PIRCAMs)
• Onboard Video Clips: 4
• Installer: 1
• User: 46
• Admin: 1
• Voice Prompt: Supported
• Loudspeaker Built-in: Supported
• Tag Reader Built-in: Supported
• Memory Log Stored: 5000
• Programming Tools: Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
• Firmware Upgrade: APP/Web Portal
• Arm Modes: Away/Stay
• Automatic Arm/Disarm Timers: Supported
• Forced Arming with Open Zones: Supported
• Diagnostics via the APP or Web: Supported
• ARC Protocol:
  • SIA DC09 (SIA level 2, Contact ID)
  • ISUP
  • ISAPI (SDK)
• Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)
• Supports Video Verification and Remote Control
• User APP for Operating: Supported
• Installer APP for Programming: Supported
• Web Server for Maintenance (Offline Configuration): Supported

Hardware Features

• RS232 Output: Supported
• SIM Slot: Dual
• RF Transmission: Two-way Wireless Communication
• RF Frequency: 433MHz
• Wireless Security: Frequency Hopping 128 AES Encryption
• 3/4G On Board: Supported

Electrical Characteristics

• Power Supply: Built-in power supply
• Battery Type: Built-in on board Battery Li
• Battery Life Span: Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
• Wireless Transmission: Wired network Supported
• Wi-Fi Standard: Supported
• Display LEDs Status: Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power

General

• Operation Temperature: -10 °C to +55 °C
• Shell Material: Plastic
• Dimension (WxHxD): 170.0 mm (6.7") x 170.0 mm (6.7") x 38.6 mm (1.5")
• Weight: 557.5 g (19.7 oz)
• Color: White

Device Management

• Keyfob: 48
• Wireless Sounder: 6 (3 internal + 3 external)
• Keypad: 8 (Including Tag reader)
• Wireless Repeater: 4
• Multi Transmitter: 6
• PIR Cam: Supported
