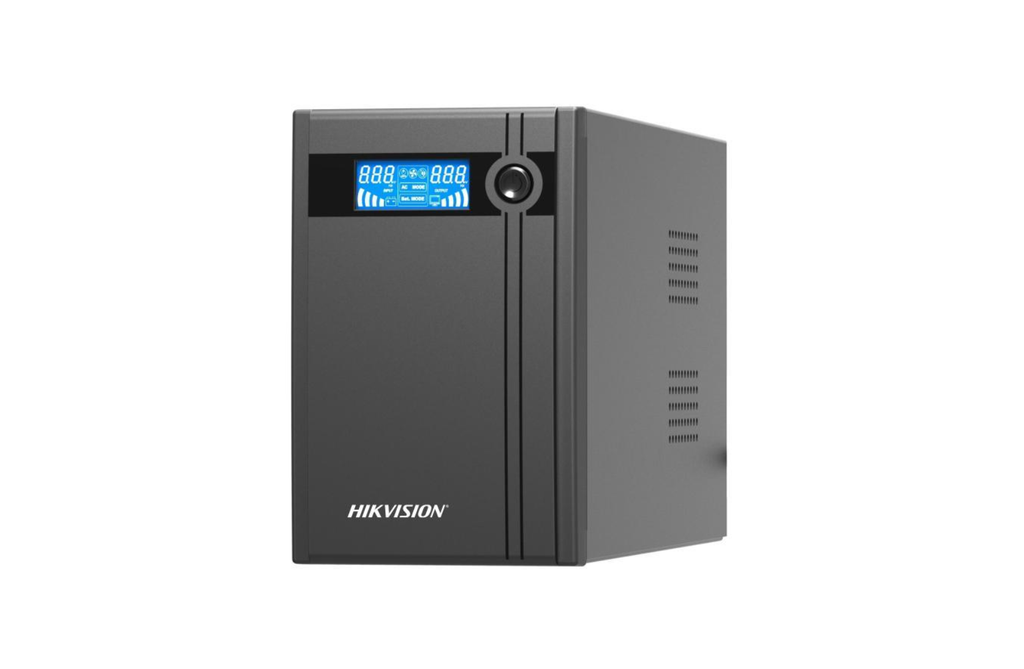

Hikvision DS-UPS2000 2000 VA / 1200 W

• Built-in AVR
• Super fast charging
• Wide input voltage range
• Overload protection
• Short circuit protection
• Surge protection
• USB port for remote control
• LCD display
• Datasheet

Power

• UPS Capacity: 2000 VA / 1200 W

Input

• Voltage Range: 140 VAC to 290 VAC

• Frequency: 50/60 Hz self-adaptive

• Plug Type: AU Type I

Output

• Voltage Range: 210 VAC to 235 VAC

• Frequency: 50 Hz ± 0.5 Hz

• Transfer Time: ≤ 10 ms

• Waveform: PWM

• Outlet Type: AU Type I

• Outlet Number: 4

Battery

• Type: 12 V / 9 Ah × 2 pcs lead-acid battery

• Recharge Time: 6–8 hours to recover 90% capacity

• Typical Backup Time:

  • 100 W load: 70 minutes

  • 300 W load: 17 minutes

  • 600 W load: 5 minutes

Interface

• Communication Ports: USB

Protection

• Full Protection: Surge protection, overload protection, discharge protection, short circuit protection

Indicator

• Display: LCD screen showing input voltage, output voltage, battery capacity, and load level

Alarm

• Charging Mode (DC Mode): Sound every 8 seconds

• Low Battery: Sound every second

• Overloading Mode: Sound every 0.5 seconds

• Fault: Continuous sound

General

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)

• Operating Humidity: 30% to 90% (non-condensing)

• Dimensions (W × H × D): 345 × 122 × 192 mm (13.58" × 4.80" × 7.56")

• Weight: Approx. 11 kg (24.3 lb)
