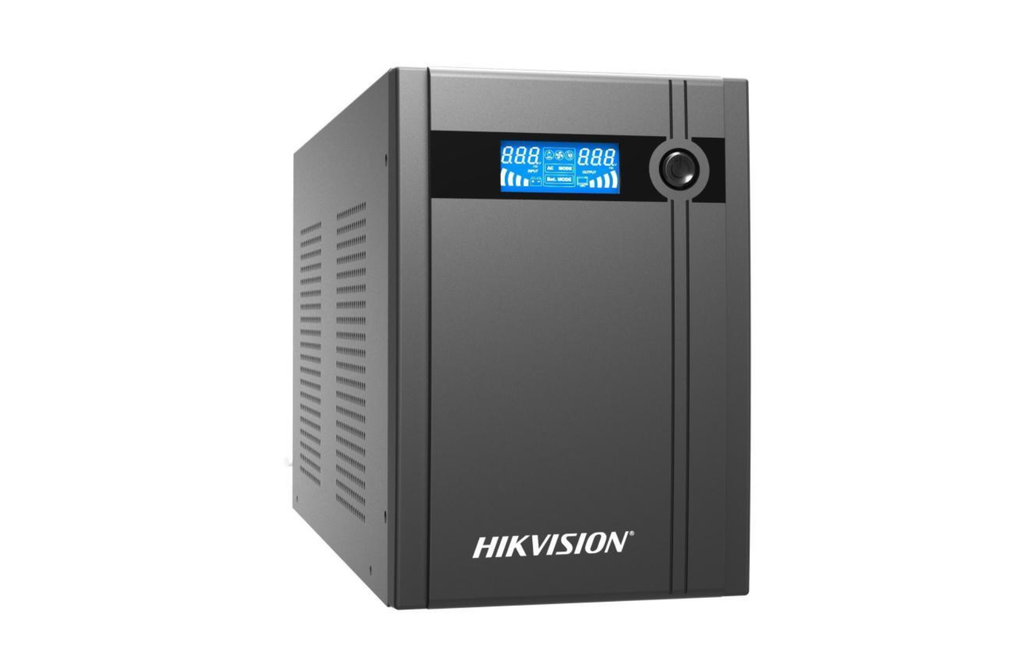

Hikvision DS-UPS3000 3000 VA / 1800 W

• Built-in AVR
• Super fast charging
• Wide input voltage range
• Overload protection
• Short circuit protection
• Surge protection
• USB port for remote control
• LCD display
• Datasheet

Power

• UPS Capacity: 3000 VA / 1800 W

Input

• Voltage Range: 140 VAC to 290 VAC

• Frequency: 50/60 Hz self-adaptive

• Plug Type: AU Type I, Type H, Type B (NEMA 5-15), Type L (10A), UK Type G, Schuko

Output

• Voltage Range: 210 VAC to 235 VAC

• Frequency: 50/60 Hz ± 0.5 Hz self-adaptive

• Transfer Time: ≤ 10 ms

• Waveform: PWM

• Outlet Type: AU Type I, Type H, Universal, Type L (10/16A)

• Outlet Number: 4

Battery

• Type: 12 V / 9 Ah × 4 pcs lead-acid battery

• Recharge Time: 6–8 hours to recover 90% capacity

• Typical Backup Time:

  • 100 W load: 150 minutes

  • 600 W load: 15 minutes

  • 900 W load: 6 minutes

Interface

• Communication Ports: USB

Protection

• Full Protection: Surge protection, overload protection, discharge protection, short circuit protection

Indicator

• Display: LCD screen showing input voltage, output voltage, battery capacity, and load level

Alarm

• Charging Mode (DC Mode): Sound every 8 seconds

• Low Battery: Sound every second

• Overloading Mode: Sound every 0.5 seconds

• Fault: Continuous sound

General

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)

• Operating Humidity: 30% to 90% (non-condensing)

• Dimensions (W × H × D): 412 × 145 × 210 mm (16.22" × 5.71" × 8.27")

• Weight: Approx. 18.5 kg (40.8 lb)
