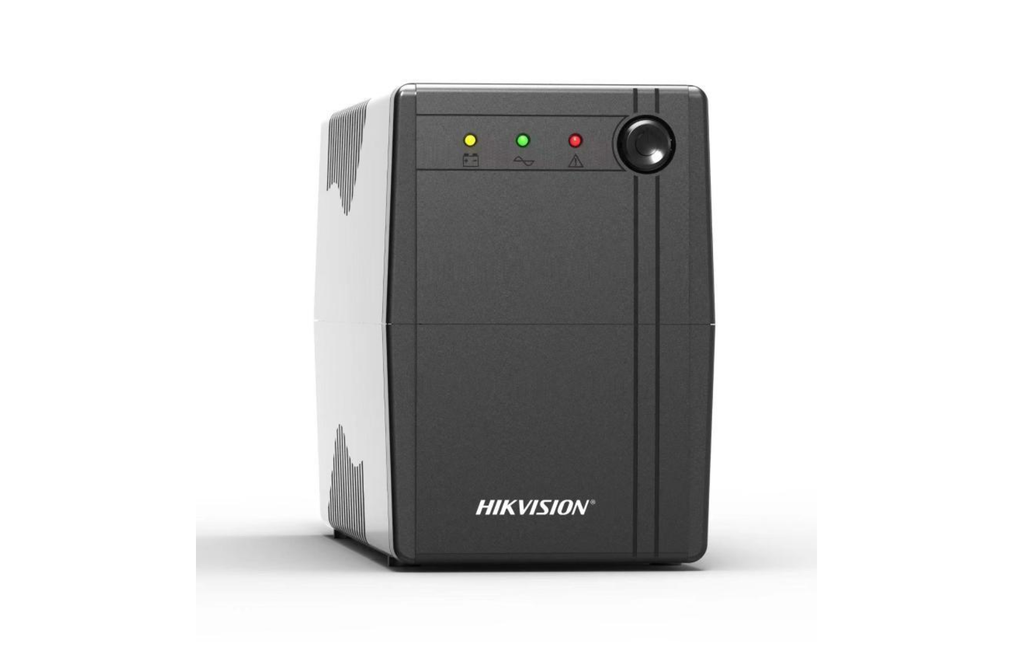

Hikvision DS-UPS600 600VA/360W

• Built-in AVR
• Super fast charging
• Wide input voltage range
• Overload protection
• Short circuit protection
• Surge protection
• Datasheet

Power

• UPS Capacity: 600 VA / 360 W

Input

• Voltage Range: 140 VAC to 290 VAC

• Frequency: 50/60 Hz self-adaptive

• Plug Type: AU Type I

Output

• Voltage Range: 210 VAC to 235 VAC

• Frequency: 50/60 Hz ± 0.5 Hz self-adaptive

• Transfer Time: ≤ 10 ms

• Waveform: PWM

• Outlet Type: AU Type I

• Outlet Number: 2

Battery

• Type: 12 V / 7 Ah lead-acid battery

• Recharge Time: 4–6 hours to recover 90% capacity

• Typical Backup Time:

  • 60 W load: 35 minutes

  • 100 W load: 20 minutes

  • 200 W load: 3 minutes

Interface

• Communication Ports: None

Protection

• Full Protection: Surge protection, overload protection, discharge protection, overcharge protection

Indicator

• Display: LED indicator

  • AC Mode: Solid green

  • Charging Mode (DC Mode): Solid red

  • Overloading Mode: Flashing yellow

Alarm

• Charging Mode (DC Mode): Sound every 8 seconds

• Low Battery: Sound every second

• Overloading Mode: Sound every 0.5 seconds

• Fault: Continuous sound

General

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)

• Operating Humidity: 30% to 90% (non-condensing)

• Dimensions (W × H × D): 274 × 95 × 139 mm (10.79" × 3.74" × 5.47")

• Weight: Approx. 4.2 kg (9.26 lb)
