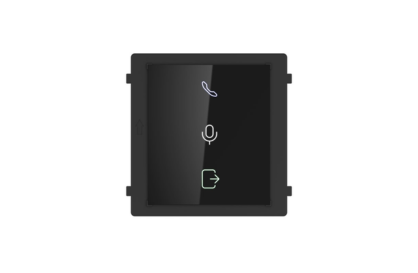

Hikvision Gen2 DS-KD-IN Video Intercom Indicator Module

KD8 Series Pro Modular Door Station

• Indicator module of modular door station
• Rich device status indication: call, door open and two-way audio
• IP65 protection level
• Backlight compensation behind the module
• Easy to use and extend

System Parameters

Operating System

• Embedded Linux operation system

ROM / RAM / CPU

• Embedded MCU Processor

Display Parameters

• Screen Size: Not supported
• Operation Method: Not supported
• Type: Not supported
• Resolution: Not supported

Video Parameters

• Lens: Not supported
• Resolution: Not supported
• FOV: Not supported
• WDR: Not supported
• Supplement Light: Not supported
• Video Compression Standard: Not supported

Audio Parameters

• Audio Compression Standard: Not supported
• Audio Input: Not supported
• Audio Output: Not supported
• Audio Compression Bitrate: Not supported
• Audio Quality: Not supported
• Volume Adjustment: Not supported

Capacity

• User Capacity: Not specified
• Face Capacity: Not specified
• Card Capacity: Not specified
• Linked Network Camera Capacity: Not specified

Network Parameters

• Communication Protocol: Not specified
• Wired Network: Not specified
• Wi-Fi Standard: Not specified
• Bluetooth Version: Not specified
• 3G/4G Standard: Not specified

Device Interfaces

• Alarm Input: Not specified
• Network Interface: Not specified
• TAMPER: Not specified
• Exit Button: Not specified
• RS-485: 1
• USB: Not specified
• Wiegand: Not specified
• TF Card: Not specified
• Alarm Output: Not specified
• Lock Control: Not specified
• Door Contact Input: Not specified
• Power Interface: 1

Performances

• Multi-Factor Authentication: Not specified
• General: Button
• Installation: Flush mounting, surface mounting
• Indicator: 3

Weight

• With package: 326 g
• Without package: 165 g

Protective Level

• IP65

Working Temperature

• -40° C to +55° C (-40° F to 131° F)

Working Humidity

• 10% to 95%

Dimensions

• 98.5 mm × 100 mm × 33.7 mm (3.87" × 3.95" × 1.33")

Battery

• Not specified

Application Environment

• Outdoor

Power Consumption

• ≤ 2 W
