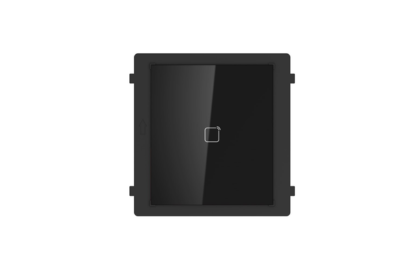

Hikvision Gen2 DS-KD-M Video Intercom Mifare Card Reader Module

KD8 Series Pro Modular Door Station

• M1 card reader module of modular door station
• Support unlock door via swiping card, issuing cards
• IP65 protection level
• Backlight compensation behind the module
• Easy to use and extend
• Data Sheet

System Parameters

• Operating System: Embedded Linux operating system
• ROM: Not supported.
• RAM: Not supported.
• CPU: Embedded MCU Processor

Display Parameters

• Screen Size: /
• Operation Method: /
• Type: /
• Resolution: /

Video Parameters

• Lens: /
• Resolution: /
• FOV: /
• WDR: /
• Supplement Light: /
• Video Compression Standard: /

Audio Parameters

• Audio Compression Standard: Not supported.
• Audio Input: /
• Audio Output: /
• Audio Compression Bitrate: Not supported.
• Audio Quality: /
• Volume Adjustment: Not supported.

Capacity

• User Capacity: /
• Face Capacity: /
• Card Capacity: /
• Linked Network Camera Capacity: /

Network Parameters

• Communication Protocol: Not supported.
• Wired Network: /
• Wi-Fi Standard: /
• Bluetooth Version: /
• 3G/4G Standard: Not supported.

Device Interfaces

• Alarm Input: /
• Network Interface: /
• TAMPER: Not supported.
• Exit Button: /
• RS-485: 1
• USB: /
• Wiegand: Not supported.
• TF Card: /
• Alarm Output: /
• Lock Control: /
• Door Contact Input: /
• Power Interface: 1

Performances

• Multi-Factor Authentication: /

General

• Button: /
• Installation: Flush Mounting, Surface Mounting
• Indicator: /

Weight

• With package: 421 g
• Without package: 160 g

Protective Level

• IP65

Working Temperature

• -40° C to +55° C (-40° F to 131° F)

Working Humidity

• 10% to 95%

Dimensions

• 98.5 mm × 100 mm × 33.7 mm (3.87" × 3.95" × 1.33")

Battery

• /

Application Environment

• Outdoor

Power Consumption

• 0.8 W
