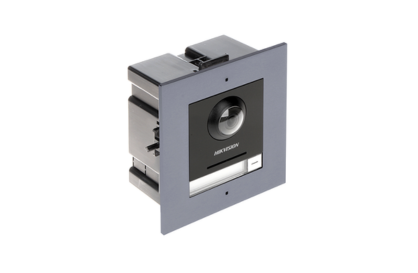

Hikvision Gen2 DS-KD8003-IME1/Flush Video Intercom Module Door Station (Flush Mount)

KD8 Series Pro Modular Door Station

• Modular door station for villa
• DS-KD8003 with its flush mounting accessories
• IP65 (DS-KD8003+DS-KD-ACF1/Plastic)
• 2 MP HD video intercom function
• Supports sub-modules access
• Easy to and extend

System Parameters

• Operating System: Embedded Linux operating system
• ROM: 16 MB
• RAM: 256 MB
• CPU: Embedded MCU Processor

Display Parameters

• Screen Size: /
• Operation Method: /
• Type: /
• Resolution: /

Video Parameters

• Lens: 1
• Resolution:
  • Main stream: 1920 × 1080
  • Sub stream: 720 × 480
• FOV: Horizontal: 180°, Vertical: 96°
• WDR: Support
• Supplement Light: IR supplement
• Video Compression Standard: H.264

Audio Parameters

• Audio Compression Standard: G.711 U
• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in loudspeaker (More than 85 dB within 20 cm)
• Audio Compression Bitrate: 64 Kbps
• Audio Quality: Noise suppression and echo cancellation
• Volume Adjustment: Adjustable

Capacity

• User Capacity: /
• Face Capacity: /
• Card Capacity: /
• Linked Network Camera Capacity: 100

Network Parameters

• Communication Protocol: TCP/IP, RSTP
• Wired Network: 10/100 Mbps self-adaptive Ethernet
• Wi-Fi Standard: /
• Bluetooth Version: /
• 3G/4G Standard: /

Device Interfaces

• Alarm Input: 4
• Network Interface: 1
• TAMPER: 1
• Exit Button: 2
• RS-485: 1
• USB: 0
• Wiegand: 0
• TF Card: 0
• Alarm Output: 0
• Lock Control: 2
• Door Contact Input: 2
• Power Interface: 1

Performances

• Multi-Factor Authentication: 2000

General

• Button: 1
• Installation: Flush mounting
• Indicator: 0

Weight

• Without package: 345 g
• With package: 840 g

Protective Level

• IP65

Working Temperature

• -40° C to +55° C (-40° F to 131° F)

Working Humidity

• 10% to 95%

Dimensions

• Door station: 98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")
• Cover: 134 mm × 124 mm × 4 mm (5.28" × 4.88" × 0.16")
• Gang box: 134 mm × 135 mm × 56 mm (5.28" × 5.31" × 2.20")

Battery

• /

Application Environment

• Outdoor

Power Consumption

• ≤ 10 W

Language

• English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak
