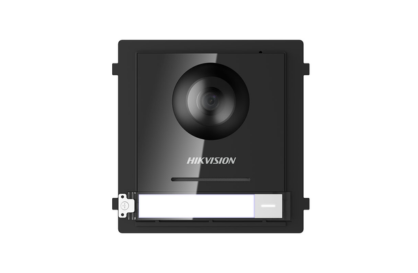

Hikvision Gen2 DS-KD8003-IME1(B) Video Intercom Module Door Station

KD8 Series Pro Modular Door Station

• Modular door station Main unit, needs mounting bracket
• 2MP HD Colorful Camera, Fish eye, IR Supplement
• 1 Call physical Button, 2 lock relays, 4-ch alarm input
• IP65, 12 VDC or standard PoE
• Video intercom to indoor station and master station



System Parameters

• Processor: Embedded MCU Processor
• Operating System: Embedded Linux Operation System

Video Parameters

• Supplement Light: IR Supplement
• Video Compression Standard: H.264

Audio Parameters

• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in loudspeaker (More than 85 dB within 20 cm)
• Audio Compression Bitrate: 64 Kbps
• Audio Quality: Noise suppression and echo cancellation

Network Parameters

• Ethernet: 10/100 Mbps self-adaptive Ethernet
• Network Protocol: TCP/IP, RTSP

Device Interfaces

• Alarm Input: Tampering alarm
• I/O Input: 4
• I/O Output: 2

General Specifications

• Power Supply: 12 VDC/PoE (IEEE 802.3af)
• Power Consumption: 4 W
• Working Temperature: -40°C to +55°C (-40°F to 131°F)
• Working Humidity: 10% to 95%
• Protective Level: IP65
• Dimensions (L × W × H): 98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")
• Language Support: English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak
