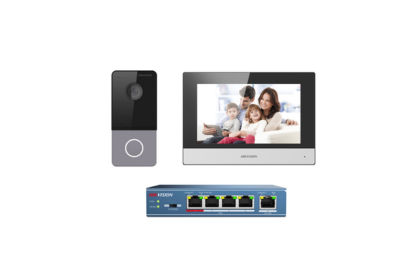

This kit consists of the most commonly ordered items (to make it easier for you)
1 x Hikvision DS-KV6113-PE1 Gen2 Intercom 1 Button ‘Villa’ Door Station
1 x Hikvision DS-3E0105P-E 4 Port Unmanaged PoE Switch
1 x Hikvision DS-KH6350-WTE1 Gen2 Video Intercom 7-Inch Touch Screen Indoor Room Station
WIRING REQUIREMENTS;
> ethernet cable from Door Station to Poe Switch
> ethernet cable from the monitor to Poe Switch
> ethernet cable Poe Switch to the modem (if you wish to set up remote communication)
If you need to open/ control 1-2 door / gate strikes, run 4 core cabling from the door station to the respective strikes. These strikes need to be powered separately, ie. the door station will not be able to power these strikes.
