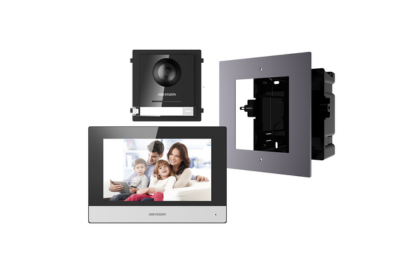

This kit consists of the most commonly ordered items (to make it easier for you)
1 x Hikvision 2nd Gen IP Intercom, Door Station with Camera, 1x Button, IP65, 12VDC/POE
1 x Hikvision 2nd Gen. Intercom, Door Station Gang Box, Flush Mount, Supports 1 Module
1 x Hikvision 2nd Gen IP Intercom, 7″ Touch Screen Room Station, 1024 x 600, 12VDC/POE
WIRING REQUIREMENTS;
> ethernet cable from Door Station to Poe Switch
> ethernet cable from the monitor to Poe Switch
> ethernet cable Poe Switch to the modem (if you wish to set up remote communication)
If you need to open/ control 1-2 door / gate strikes, run 4 core cabling from the Intercom Door Station to the respective strikes. These strikes need to be powered separately, ie. the door station will not be able to power these strikes.
DOOR STATION
The Hikvision 2nd Generation offers a flexible modular range of IP intercoms. The HIK-KD8003-IME1 is a door station with a 2MP HD camera which supports up to 8 extension modules. Being a modular and customisable design, this allows the SI to create an entry door panel consisting of one or all the following options; electronic tenant directory, digital keypad, nametag, RFID reader and display modules.
- IP65 rating
- H.264 video compression
- -40 to +60 degrees Celsius operating temperature
- Dimensions: 98 x 99.8 x 43.9mm
- 2MP HD video intercom function
- Access control function
- Noise suppression and echo cancellation
- Low illumination
- Tampering alarm supported
- Fisheye camera with IR supplement light
- Supports up to 8 sub-modules’
- Nametag customisation
- Easy to expand
MOUNT MODULE
The Hikvision HIK-KD-ACF1-P is a door station gang box that is designed to support 1 module.
-
- Material: plastic
Operating temperature: -40 to 60 degrees celsius
Cover dimensions: 134 x 124 x 4mm
Gang box dimensions: 134 x 135 x 56mm
- Includes gang box, cover, screws, lines, etc.
- Adapts to one-module flush mounting
MONITOR
Hikvision 2nd Gen Hikvision DS-KH6350-WTE1 Gen2 IP Intercom, 7″ Touch Screen Room Station, 1024 x 600, 12VDC/POE
- 7 inch touch screen
- 1024 x 600 resolution
- Standard PoE
- 128MB memory
- Up to 32GB micro SD slot for memory expansion
- Built-in omnidirectional microphone & loudspeaker
- Messages and captured pictures stored in the TF card
- Remote unlocking via the client software or the mobile client
- Views live videos of door stations and linked cameras
- -10 to +55 degrees Celsius operating temperature
- Dimensions: 200 x 140 x 15.1mm
