Description

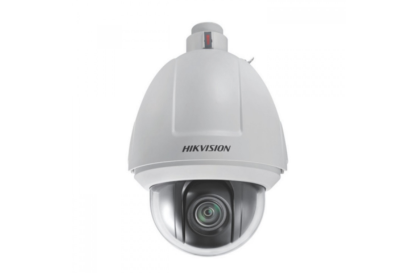

Recording at 2MP with H.264 compression, Hikvision’s HIK-2DF5286-AE3 indoor PTZ dome camera features a 360 degree endless pan range and a -5 to 90 degree tilt range. With a variety of additional features including 3D digital noise reduction, surface or recessed mount options and a 30x optical zoom day/night lens, this versatile indoor PTZ dome camera offers more detail over expansive areas.
- 1/2.8″ progressive scan CMOS
- 2 megapixel in real-time
- 30x optical zoom
- Smart tracking, smart defog
- 3D DNR, DWDR, HLC/BLC
- Ultra-low temperature tolerance to 40deg
- ROI encoding
- Hi-PoE/24V AC power supply
Special Order (Delivery time will vary)
Specifications:
| Camera | ||
|---|---|---|
| Image Sensor: | | | 1/2.8″ Progressive Scan CMOS |
| Effective Pixels: | | | 1920(H)x1080(V) |
| Signal System: | | | PAL/NTSC |
| Minimum Illumination: | | | Color : 0.3 lux (F1.6,1/30 sec, 50 IRE, AGC On) B/W : 0.02 lux (F1.6,1/30 sec, 50 IRE, AGC On)Color : 0.02 lux (F1.6, 1/1 sec, 50 IRE, AGC On) B/W : 0.002 lux (F1.6, 1/1 sec, 50 IRE, AGC On) |
| White Balance: | | | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC: | | | Auto/Manual |
| BLC: | | | ON/OFF |
| HLC: | | | Support |
| Smart defog: | | | Support |
| WDR: | | | Support |
| Shutter Time: | | | 50Hz: 1-1/30,000s 60Hz: 1-1/30,000s |
| Day& Night: | | | ICR |
| Digital Zoom: | | | 16X |
| Privacy Masking: | | | 24 privacy masks programmable; optional multiple colors and mosaics |
| Auto Focus: | | | Auto / Semi-automatic / Manual |
| Lens | ||
| Focal Length: | | | 4.3-129mm, 30x |
| Zoom Speed: | | | Approx.3s(Optical Wide-Tele) |
| Angle of View: | | | 65.5-2.11 degree (Wide-Tele) |
| Minimum Working Distance: | | | 10-1500mm(Wide-Tele) |
| Aperture Range: | | | F1.6-F5.0 |
| Pan & Tilt | ||
| Pan Range: | | | 360°endless |
| Pan Speed: | | | Pan Manual Speed: 0.1° -300°/s, Pan Preset Speed: 540°/s |
| Tilt Range: | | | -5°~90° (Auto Flip ) |
| Tilt Speed: | | | Tilt Manual Speed: 0.1°-240°/s, Tilt Preset Speed: 400°/s |
| Proportional Zoom: | | | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset: | | | 300 |
| Patrol: | | | 8 patrols, up to 32 presets per patrol |
| Pattern: | | | 4 patterns, with the recording time not less than 10 minutes per pattern |
| Power loss recovery: | | | Support |
| Park Action: | | | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| PTZ Position Display: | | | ON/OFF |
| Freeze Frame: | | | Support |
| Smart-tracking: | | | Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger |
| Alarm | ||
| Alarm Input: | | | 7 Inputs |
| Alarm Output: | | | 2 |
| Alarm Actions: | | | Preset, patrol, pattern, SD/SDHC card recording, relay output, notifi cation on client |
| Input & Output | ||
| Monitor Output: | | | 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC |
| Audio Input: | | | Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10% |
| Audio Output: | | | Line level, impendance: 600Ω |
| Network | ||
| Ethernet: | | | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution: | | | 1920×1080 |
| Main Stream: | | | 50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720) |
| Sub Stream: | | | 50Hz: 25fps(704×576), 25fps (352×288), 25fps (176×144) 60Hz: 30fps(704×480), 30fps (352×240), 30fps (176×120) |
| Third Stream: | | | 50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720), 25fps(704×576), 25fps (352×288), 25fps (176×144) 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720), 30fps(704×480), 30fps (352×240), 30fps (176×120) |
| Image Compression: | | | H.264/MJPEG/MPEG4, H.264 encoding with Baseline/Main/High profile |
| ROI encoding: | | | Support 24 areas with adjustable levels |
| Audio Compression: | | | G.711ulaw/G.711alaw/G.726/MP2L2 |
| Protocols: | | | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| No. of Simultaneous Users: | | | Up to 20 users |
| Three-Stream: | | | Support |
| Mini SD Card: | | | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording |
| User/Host Level: | | | Tilt Manual Speed: 0.1°-240°/s, Tilt Preset Speed: 400°/sParameter_2047 |
| Security Measures: | | | User authentication (ID and PW), Host authentication (MAC address) IP address filtering |
| Client GUI | ||
| Camera Control: | | | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
| Date & Time Display: | | | Time: Week: Date, 6 formats on the Client |
| Client: | | | Support iVMS-4200 |
| Web Browser: | | | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language |
| General | ||
| RS-485 Protocols: | | | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Menu Language: | | | English / Chinese |
| Power Supply: | | | 24V AC |
| Power Consumption: | | | Outdoor dome: Max. 40W Indoor/In-ceiling dome: Max. 25W |
| Working Temperature/Humidity: | | | -30 ℃-65℃(-22℉-149℉)(outdoor dome) / -10℃-50℃(14℉-122℉)(indoor dome ) 90% or less |
| Protection Level: | | | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
| Mounting: | | | Various mounting modes optional |
| Dimensions: | | | Φ220×325.5mm (Φ8.66”×12.81”)(Outdoor) Φ183.4×243mm(Φ7.22”×9.57”)(indoor) Φ245×236mm(Φ9.65”×9.29”)(indoor celing) |
| Weight (approx.): | | | 4Kg (8.82 Ibs) |
| Mount Option: | | | Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box |
