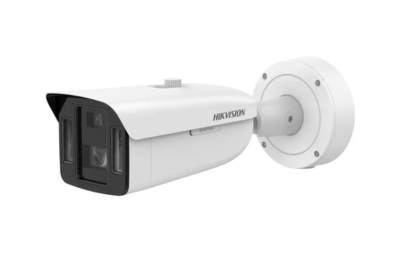

Hikvision iDS-2CD8A86G0-XZ(H)S(Y) 8MP Outdoor TandemVu Bullet Camera, ColorVu, ANPR, IP67, 10 to 50 mm

• High quality imaging with 8 MP resolution in channel 1 and 4 MP resolution in channel 2
• Adopt dual-channel design so you can get details in channel 1 and panorama view in channel 2
• Excellent low-light performance via DarkFighter and ColorVu technology
• Clear imaging against strong back light due to 140 dB WDR technology
• Efficient H.265+ compression technology to save bandwidth and storage
• 5 streams to meet a wide variety of applications
• Water and dust resistant (IP67) and vandal proof (IK10)

iDS-2CD8A86G0-XZHSY_Datasheet_20231030



• Camera
• Image Sensor

  Channel 1: 1/1.2″ Progressive Scan CMOS,

  Channel 2: 1/1.8 Progressive Scan CMOS”

• Max. ResolutionChannel 1: 3840 × 2160, channel 2: 2560 × 1440
• Min. Illumination

  Channel 1: Color: 0.0003 Lux @ (F1.2, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR,

  Channel 2: Color: 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR

• Shutter Time1 s to 1/100,000 s
• Day & Night

  IR cut filter,

  Blue glass module (less ghost phenomenon)

• Angle AdjustmentPan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°

• Lens
• Focal Length & FOV

  Channel 1: 10 to 50 mm: horizontal FOV 36° to 13.1°, vertical FOV: 20.4° to 7.4°, diagonal FOV 41.8° to 14.9°

  Channel 2: 4 mm: horizontal FOV: 89°, vertical FOV: 45°, diagonal FOV: 107°

• FocusChannel 1: Auto, semi-auto, manual
• Iris Type

  Channel 1: P-iris,

  Channel 2: Fixed

• Aperture

  Channel 1: Constant F1.6 throughout the zoom range,

  Channel 2: F1.0

• DORI
• DORI

  Channel 1:

  Wide: D:241.4 m, O: 95.8 m, R: 48.3 m, I: 24.1 m

  Tele: D: 620.7 m, O: 246.3 m, R:124.1 m, I: 62.1 m

  Channel 2:

  D:77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m

• Illuminator
• Supplement Light TypeHybrid (IR and White Light)
• Supplement Light Range

  Channel 1: up to 120 m,

  Channel 2: up to 30 m

• Smart Supplement LightYes
• IR Wavelength850 nm

• Video
• Main Stream

  Channel 1:

  50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 24 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

  Channel 2:

  50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream

  Channel 1:

  50 Hz: 25 fps (704 × 576, 640 × 480)

  60 Hz: 24 fps (704 × 480, 640 × 480)

  Channel 2:

  50 Hz: 25 fps (704 × 576, 640 × 480)

  60 Hz: 30 fps (704 × 480, 640 × 480)

• Third Stream

  Channel 1:

  50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

  60 Hz: 24 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

  Channel 2:

  50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

• Fourth Stream

  Channel 1:

  50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

  60 Hz: 24 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

  Channel 2:

  50 Hz: 25 fps (704 × 576, 640 × 480)

  60 Hz: 30 fps (704 × 480, 640 × 480)

• Fifth Stream

  Channel 1:

  50 Hz: 25 fps (704 × 576, 640 × 480)

  60 Hz: 24 fps (704 × 480, 640 × 480)

  Channel 2:

  50 Hz: 25 fps (704 × 576, 640 × 480)

  60 Hz: 30 fps (704 × 480, 640 × 480)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264,

  Fourth stream: H.265/H.264/MJPEG,

  Fifth stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)4 fixed regions for each stream
• Target CroppingYes

• Audio
• Audio TypeMono sound
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
• Simultaneous Live ViewUp to 20 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3
• Network Storage

  NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200,Hik-Connect
• Web Browser

  Plug-in required live view: IE 10, IE11,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

• Image
• Image Parameters SwitchYes
• Image SettingsSaturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
• Day/Night Switch

  Channel 1: Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger,

  Channel 2: Day, Night, Auto, Schedule, Alarm Trigger

• Wide Dynamic Range (WDR)140 dB
• Image Enhancement

  Channel 1: BLC, HLC, 3D DNR, Defog, EIS,

  Channel 2: BLC, HLC, 3D DNR, Defog

• Privacy Mask8 programmable polygon privacy masks
• Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

• Interface
• Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
• Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Audio

  1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

  1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound

• Alarm2 inputs, 2 outputs (max. 24 VDC, 1 A)
• RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset KeyYes
• Power Output12 VDC, max. 50 mA

• Event
• Basic EventMotion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error,video quality diagnosis, vibration detection
• Smart EventScene change detection,audio exception detection,defocus detection
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,white light flashing

• Deep Learning Function
• Multi-Target-Type Detection

  Channel 1,

  Detects up to 60 targets simultaneously,

  Supports simultaneous detection and capture of human body, face and vehicle,

  Gets 7 face features,

  Gets 13 human body features,

  Gets 2 vehicle features

• Face Capture

  Channel 1,

  Detects up to 120 faces simultaneously,

  Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,

  Uploads face with background and closed-up face pictures

• Face Comparison

  Channel 1,

  Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total. ,

  Recognizes face identity via face modeling, grading and comparing to those in face library,

  Supports face library encryption

• Perimeter Protection

  Channel 1,

  Line crossing, intrusion, region entrance, region exiting,

  Support alarm triggering by specified target types (human and vehicle),

  Channel 2,

  Line crossing, intrusion, region entrance, region exiting,

  Support alarm triggering by specified target types (human and vehicle)

• Road Traffic And Vehicle Detection

  Channel 1,

  Blocklist and allowlist: up to 10,000 records

  Support license plate recognition of motorcycles (only in checkpoint scenario)

  Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)

  License plate recognition rate ≥98%

• General
• Power

  Three-core terminal block,

  12 VDC ± 20%, 1.90 A, max. 22.7 W,

  24 VAC ± 20%, 1.39 A, max. 22.3 W,

  PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.59 A to 0.44 A, max. 24.7 W

• MaterialAluminum alloy body
• DimensionØ140 mm × 410.1 mm (Ø5.5″ × 16.1″)
• Package Dimension462 mm × 197 mm × 195 mm (18.2″ × 7.76″ × 7.68″)
• WeightApprox. 2.2 kg (4.85 lb.)
• With Package WeightApprox. 3.38 kg (7.45 lb.)
• Startup And Operating Conditions

  With -H: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing),

  Without -H: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• General FunctionHeartbeat,one-key reset,mirror,password protection,flash log,anti-banding
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• HeaterYes
• DemistYes
• Storage Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)

• Approval
• EMC

  FCC: 47 CFR Part 15, Subpart B,

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7,

  KC: KN32: 2015, KN35: 2015

• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  LOA: IEC/EN 60950-1

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
• Anti-Corrosion Protection-Y model: NEMA 4X (NEMA 250-2018)
• Automotive And RailwayEN50121-4
• OtherPVC FREE
