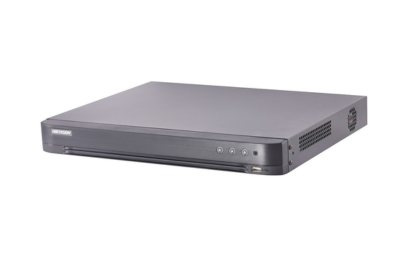

Hikvision iDS-7204HUHI-M1/S TVI4.0 4ch Acusense DVR, H.265+ 3TB HDD

4-ch 5 MP 1U H.265 AcuSense DVR

• 4 channels and 1 HDD 1U AcuSense DVR
• False alarm reduction by human and vehicle target classification based on deep learning
• Efficient H.265 pro+ compression technology
• Encoding abilty up to 8 MP lite @ 15 fps, 5 MP @ 12 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 8 network cameras can be connected.
• 3TB Hard Drive Included.

DVR Specifications

Motion Detection 2.0

• Human/Vehicle Analysis:
  • Deep learning-based motion detection 2.0 is enabled by default for all analog channels.
  • Classifies human and vehicle, significantly reducing false alarms caused by objects like leaves and lights.
  • Supports quick search by object or event type.

Perimeter Protection

• Human/Vehicle Analysis: Up to 4 channels

Facial Detection

• Facial Detection And Capture:
  • Face picture detection
  • Face picture search

Video And Audio

• IP Video Input:
  • 2 channels (up to 6 channels)
  • Up to 8 MP resolution
  • Enhanced IP mode:
    • 4 channels (up to 8 channels), each up to 4 Mbps
    • Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input:
  • 4 channels; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDMI Output:
  • 1 channel, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output:
  • 1 channel, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • HDMI/VGA simultaneous output
• CVBS Input: PAL/NTSC
• CVBS Output:
  • 1 channel, BNC (1.0 Vp-p, 75 Ω)
  • Resolution: PAL: 704 × 576, NTSC: 704 × 480
• Synchronous Playback: 4 channels

HDTVI Input

• Resolutions Supported:
  • 8 MP (3840 × 2160) @ 15 fps
  • 8 MP (3840 × 2160) @ 12 fps
  • 3K (2960 x 1665) @ 20 fps
  • 5 MP (2560 × 1944) @ 20 fps
  • 5 MP (2560 × 1944) @ 12 fps
  • 4 MP (2560 × 1440) @ 30 fps
  • 4 MP (2560 × 1440) @ 25 fps
  • 3 MP @ 18 fps
  • 1080p @ 30 fps
  • 1080p @ 25 fps
  • 720p @ 30 fps
  • 720p @ 25 fps

AHD Input

• Resolutions Supported:
  • 5 MP (2560 × 1944) @ 20 fps
  • 5 MP (2560 × 1944) @ 12 fps
  • 4 MP (2560 × 1440) @ 30 fps
  • 4 MP (2560 × 1440) @ 25 fps
  • 1080p @ 30 fps
  • 1080p @ 25 fps
  • 720p @ 30 fps
  • 720p @ 25 fps

HDCVI Input

• Resolutions Supported:
  • 8 MP (3840 × 2160) @ 15 fps
  • 8 MP (3840 × 2160) @ 12 fps
  • 5 MP (2592 × 1944) @ 20 fps
  • 4 MP (2560 × 1440) @ 30 fps
  • 4 MP (2560 × 1440) @ 25 fps
  • 1080p @ 30 fps
  • 1080p @ 25 fps
  • 720p @ 30 fps
  • 720p @ 25 fps

Audio

• Audio Output: 1 channel, RCA (Linear, 1 KΩ)
• Audio Input: 1 channel, RCA (2.0 Vp-p, 1 KΩ)
• Two-Way Audio: 1 channel, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Recording

• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Frame Rate:
  • Main stream: 8 MP @ 8 fps, 3K @ 12 fps, 5 MP @ 12 fps, 4 MP @ 15 fps, 8 MP Lite @ 15 fps, 3 MP @ 18 fps
  • 1080p/720p/WD1/4CIF/VGA/CIF @ 25 fps (P)/30 fps (N)
  • *8 MP @ 8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.
  • Sub-stream: WD1/4CIF/CIF @ 25 fps (P)/30 fps (N)
• Video Bitrate: 32 Kbps to 10 Mbps
• Dual-Stream: Support
• Stream Type: Video, Video & Audio
• Audio Compression: G.711u
• Audio Bitrate: 64 Kbps

Network

• Total Bandwidth: 96 Mbps
• Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connection: 32
• Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface

• SATA: 1 SATA interface
• Capacity: Up to 10 TB capacity for each disk
• Serial Interface: RS-485 (half-duplex)
• USB Interface:
  • Front panel: 1 × USB 2.0
  • Rear panel: 1 × USB 2.0
• Alarm In/Out: N/A

General

• Power Supply: 12 VDC
• Consumption: ≤ 10 W
• Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
• Weight: ≤ 1.16 kg (2.6 lb)
