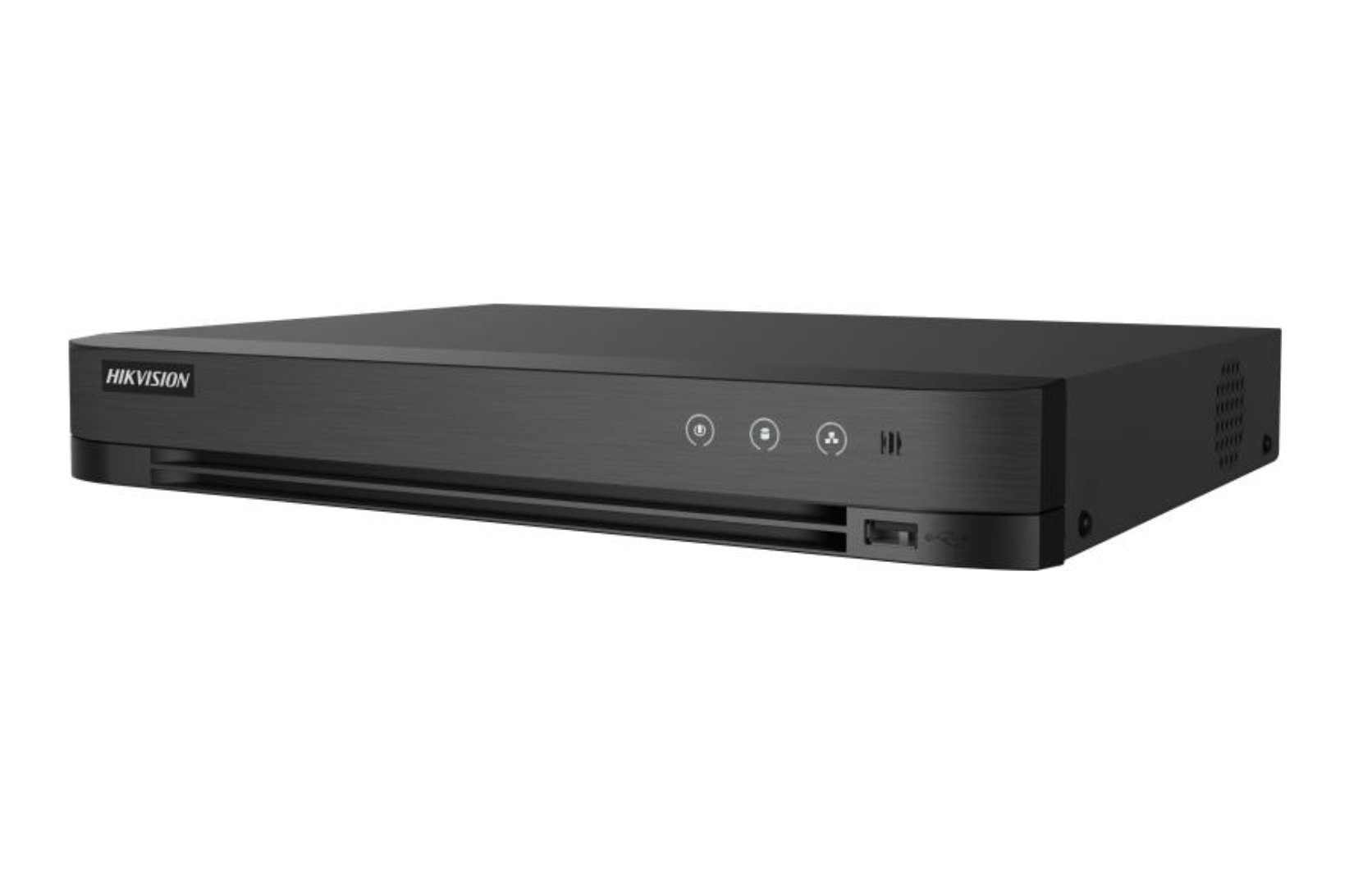

Hikvision iDS-7204HUHI-M1/X 4-Channel 5MP AcuSense DVR

Key Features

• 4-channel analog camera input

• Supports up to 8 IP camera inputs in enhanced mode

• Up to 8MP IP camera resolution

• 5-in-1 adaptive video input: HDTVI, AHD, HDCVI, CVBS and IP

• Up to 4-channel perimeter protection with human and vehicle classification

• Up to 2-channel facial recognition

• Supports up to 16 face picture libraries

• 4-channel AcuSearch technology

• Motion detection supported on all channels

• Encoding up to 8MP at 8 fps on channel 1

• H.265 Pro+ compression technology

• 1 SATA interface supporting up to 12TB HDD

• HDMI output up to 2560 × 1440 at 60Hz

• Hik-Connect remote access support

• Datasheet

Perimeter Protection

• Human and Vehicle Analysis: Up to 4 channels

• Deep learning-based target classification

Facial Recognition

• Face Picture Libraries: Up to 16 libraries

• Face Picture Comparison: Supported

• Face Picture Search: Supported

• Comparison Alarm: Up to 2 channels using HD analog cameras

Video Inputs

• Analog Video Input: 4 channels

• Interface: BNC, 1.0 Vp-p, 75Ω

• Supports coaxitron connection

• Standard IP Video Input: 2 channels, expandable up to 6 channels

• Enhanced IP Mode: 4 IP channels, expandable up to 8 total channels

• Maximum IP Camera Resolution: 8MP

• Maximum IP Bitrate: 4 Mbps per channel in enhanced mode

• Supported IP Compression: H.265+, H.265, H.264+ and H.264

HDTVI Input

• 8MP: 3840 × 2160 at 12/15 fps

• 3K: 2960 × 1665 at 20/25 fps

• 3K: 3328 × 1504 at 20 fps

• 2K: 2304 × 1296 at 20 fps

• 5MP: 2560 × 1944 at 20 fps

• 4MP: 2560 × 1440 at 25/30 fps

• 1080p: 25/30 fps

• 720p: 25/30 fps

AHD Input

• 5MP: 2560 × 1944 at 20 fps

• 4MP: 2560 × 1440 at 25/30 fps

• 1080p: 25/30 fps

• 720p: 25/30 fps

HDCVI Input

• 8MP: 3840 × 2160 at 12/15 fps

• 3K: 2880 × 1620 at 20/25 fps

• 5MP: 2592 × 1944 at 20 fps

• 4MP: 2560 × 1440 at 25/30 fps

• 1080p: 25/30 fps

• 720p: 25/30 fps

Video Outputs

• HDMI Output: 1 channel

• HDMI Resolution:

  • 2560 × 1440 at 60Hz

  • 1920 × 1080 at 60Hz

  • 1280 × 1024 at 60Hz

  • 1280 × 720 at 60Hz

• VGA Output: 1 channel

• VGA Resolution:

  • 1920 × 1080 at 60Hz

  • 1280 × 1024 at 60Hz

  • 1280 × 720 at 60Hz

• HDMI and VGA simultaneous output supported

• CVBS Output: 1-channel BNC

• PAL Resolution: 704 × 576

• NTSC Resolution: 704 × 480

• Synchronous Playback: 4 channels

Recording

• Video Compression: H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264

• Main Stream Encoding:

  • 8MP at 8 fps

  • 3K at 12 fps

  • 5MP at 12 fps

  • 4MP at 15 fps

  • 8MP Lite at 15 fps

  • 3MP at 18 fps

  • 1080p, 720p, WD1, 4CIF, VGA and CIF at 25/30 fps

• 8MP at 8 fps is available on channel 1 only

• 8MP Lite is available on channels 2 to 4 only

• Sub-Stream: WD1, 4CIF and CIF at 25/30 fps

• Video Bitrate: 32 Kbps to 10 Mbps

• Dual Stream: Main stream or sub-stream

• Stream Type: Video or video and audio

Audio

• Audio Input: 4-channel RCA and audio over coax

• Audio Output: 1-channel RCA

• Two-Way Audio: 1-channel RCA using the first audio input

• Audio Compression: G.711u

• Audio Bitrate: 64 Kbps

Network

• Total Bandwidth: 96 Mbps

• Remote Connections: Up to 32

• Network Interface: 1 × RJ45 10/100 Mbps self-adaptive Ethernet port

• Supported Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF and ISUP

Storage

• SATA Interface: 1

• Maximum HDD Capacity: Up to 12TB

Interfaces

• RS-485: 1 × half-duplex interface

• Front USB: 1 × USB 2.0

• Rear USB: 1 × USB 3.0

• Alarm Input/Output: Optional 4/1 configuration

Power

• Power Supply: 12 VDC, 1.5 A

• Power Consumption: Maximum 10W without HDD

Operating Conditions

• Working Temperature: -10°C to 55°C

• Working Humidity: 10% to 90%

Physical Specifications

• Dimensions: 319 × 236 × 48 mm

• Weight: Maximum 1.16 kg

• Form Factor: 1U
