Description

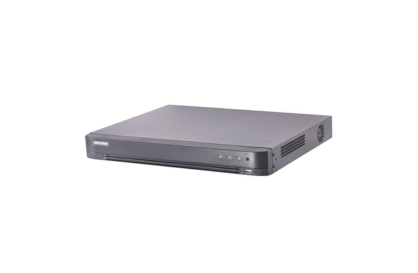

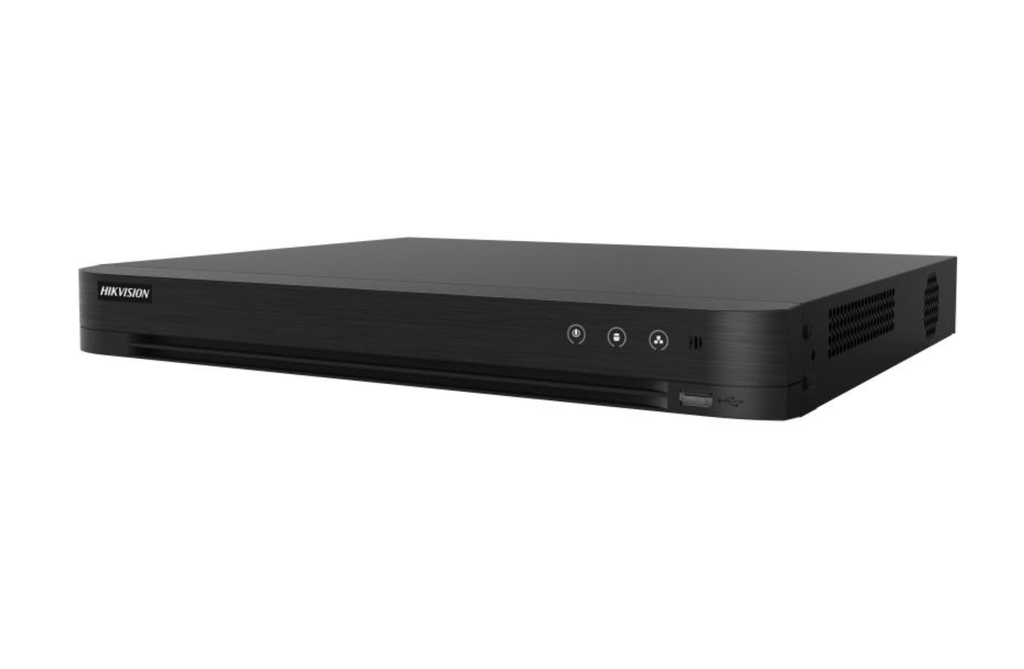

8-ch 4K 1U H.265 AcuSense DVR
- 8 channels and 2 HDD 1U AcuSense DVR
 - False alarm reduction by human and vehicle target classification based on deep learning
 - Efficient H.265 pro+ compression technology
 - Encoding abilty up to 8 MP @ 15 fps
 - 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
 -
Up to 16 network cameras can be connected.

Motion Detection 2.0
-
Human/Vehicle Analysis
- Deep learning-based motion detection 2.0 is enabled by default for all analog channels.
 - Capable of classifying human and vehicle, significantly reducing false alarms caused by objects like leaves and lights.
 - Quick search by object or event type is supported.

 -
Perimeter Protection
-
Line Crossing Detection/Intrusion Detection
- 8 channels supported.


 -
Line Crossing Detection/Intrusion Detection
 -
Facial Detection
-
Facial Detection and Capture
- Includes face picture detection and face picture search capabilities.


 -
Facial Detection and Capture

Video And Audio
-
IP Video Input
- 8 channels (expandable up to 16 channels).
 - Supports up to 8 MP resolution.
 - Supports H.265+/H.265/H.264+/H.264 IP cameras.

 -
Analog Video Input
- 8 channels.
 - BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection.

 -
Total Bandwidth
- 128 Mbps.

 -
HDMI Output
- 1 channel, supports resolutions:
- 4K (3840 × 2160)/30Hz
 - 2K (2560 × 1440)/60Hz
 - 1920 × 1080/60Hz
 - 1280 × 1024/60Hz
 - 1280 × 720/60Hz


 - 1 channel, supports resolutions:
 -
CVBS Input
- PAL/NTSC.

 -
CVBS Output
- 1 channel, BNC (1.0 Vp-p, 75 Ω), resolution:
- PAL: 704 × 576
 - NTSC: 704 × 480


 - 1 channel, BNC (1.0 Vp-p, 75 Ω), resolution:
 -
Synchronous Playback
- 8 channels.

 -
VGA Output
- 1 channel, resolutions supported:
- 1920 × 1080/60Hz
 - 1280 × 1024/60Hz
 - 1280 × 720/60Hz


 - 1 channel, resolutions supported:

Video Inputs
-
HDTVI Input
- Supports:
- 8 MP (3840 × 2160)@15 fps, 8 MP (3840 × 2160)@12.5 fps
 - 3K (2960 × 1665)@20 fps
 - 5 MP (2560 × 1944)@20 fps, 5 MP (2560 × 1944)@12 fps
 - 4 MP (2560 × 1440)@30 fps, 4 MP (2560 × 1440)@25 fps
 - 3 MP@18 fps
 - 1080p@30 fps, 1080p@25 fps
 - 720p@30 fps, 720p@25 fps


 - Supports:
 -
AHD Input
- Supports:
- 5 MP (2560 × 1944)@20 fps, 5 MP (2560 × 1944)@12 fps
 - 4 MP (2560 × 1440)@30 fps, 4 MP (2560 × 1440)@25 fps
 - 1080p@30 fps, 1080p@25 fps
 - 720p@30 fps, 720p@25 fps


 - Supports:
 -
HDCVI Input
- Supports:
- 8 MP (3840 × 2160)@15 fps, 8 MP (3840 × 2160)@12.5 fps
 - 5 MP (2592 × 1944)@20 fps
 - 4 MP (2560 × 1440)@30 fps, 4 MP (2560 × 1440)@25 fps
 - 1080p@30 fps, 1080p@25 fps
 - 720p@30 fps, 720p@25 fps


 - Supports:

Audio
-
Audio Output
- 1 channel, RCA (Linear, 1 KΩ).

 -
Audio Input
- 1 channel, RCA (2.0 Vp-p, 1 KΩ) (expandable to 8 channels via coaxial cable).

 -
Two-Way Audio
- 1 channel, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input).


Recording
-
Video Compression
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264.

 -
Encoding Resolution
- Supports various resolutions including 8 MP, 5 MP, 3K, 4 MP, 3 MP, 1080p, 720p, WD1, 4CIF, VGA, CIF.

 -
Frame Rate
- Main stream:
- 8 MP@15 fps/8 MP@12 fps/3K@20 fps/5 MP@20 fps/5 MP@12 fps/3 MP@18 fps
 - 4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

 - Sub-stream:
- WD1/4CIF/CIF@25 fps (P)/30 fps (N)


 - Main stream:
 -
Video Bitrate
- 32 Kbps to 16 Mbps.

 -
Dual-Stream
- Support for video and video & audio streams.


Network
-
Network Protocol
- TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF.

 -
Remote Connection
- Supports up to 64 connections.

 -
Network Interface
- 1 RJ45 10M/100M/1000M self-adaptive Ethernet interface.

 -
Wi-Fi
- Connectable to Wi-Fi network by Wi-Fi dongle through USB interface.


Auxiliary Interface
-
SATA
- 2 SATA interfaces.

 -
Capacity
- Up to 10 TB capacity for each disk.

 -
Serial Interface
- RS-485 (half-duplex).


USB Interface
- Front panel: 1 × USB 2.0.
 - Rear panel: 1 × USB 2.0.

General
-
Power Supply
- 12 VDC, 3.33 A.

 -
Consumption
- ≤ 15 W (without HDD).

 -
Working Temperature
- -10 °C to +55 °C (+14 °F to +131 °F).

 -
Working Humidity
- 10% to 90%.

 -
Dimension (W × D × H)
- 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch).

 -
Weight
- ≤ 3.1 kg (without HDD, 6.9 lb.).
