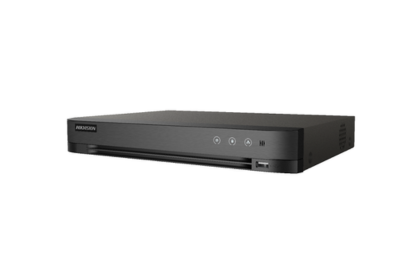

Hikvision iDS-7208HUHI-M1/S 8-ch 5 MP 1U H.265 AcuSense DVR with 3TB HDD

8-ch 5 MP 1U H.265 AcuSense DVR

• 8 channels and 1 HDD 1U AcuSense DVR
• False alarm reduction by human and vehicle target classification based on deep learning
• Efficient H.265 pro+ compression technology
• Encoding abilty up to 8 MP @ 8 fps, 5 MP @ 12 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 16 network cameras can be connected.

Motion Detection 2.0

• Human/Vehicle Analysis
• Deep learning-based motion detection 2.0 is enabled by default for all analog channels. It can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights.
• Quick search by object or event type is supported.

Perimeter Protection

• Human/Vehicle Analysis
• Up to 4 channels supported.

Facial Detection

• Facial Detection And Capture
• Face picture detection, face picture search.

Video And Audio

• IP Video Input
  • 4 channels (up to 12 channels)
  • Up to 8 MP resolution
• Enhanced IP mode on:
  • 8 channels (up to 16 channels), each up to 4 Mbps
  • Supports H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input
  • 8 channels; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDMI Output
  • 1 channel, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • HDMI/VGA simultaneous output
• CVBS Input
  • PAL/NTSC
• CVBS Output
  • 1 channel, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Synchronous Playback
  • 8 channels

HDTVI Input

• 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

AHD Input

• 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

HDCVI Input

• 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

Audio

• Audio Output
  • 1 channel, RCA (Linear, 1 KΩ)
• Audio Input
  • 1 channel, RCA (2.0 Vp-p, 1 KΩ)
• Two-Way Audio
  • 1 channel, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Recording

• Video Compression
  • H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution
  • 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Frame Rate
  • Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps; 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
  • Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
• Video Bitrate
  • 32 Kbps to 10 Mbps
• Dual-Stream
  • Supports Video, Video & Audio
• Audio Compression
  • G.711u
• Audio Bitrate
  • 64 Kbps

Network

• Total Bandwidth
  • 128 Mbps
• Network Protocol
  • TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connection
  • Up to 64 connections
• Network Interface
  • 1 × RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface

• SATA
  • 1 SATA interface
  • Up to 10 TB capacity for each disk
• Serial Interface
  • RS-485 (half-duplex)
• USB Interface
  • 1 × USB 2.0
  • 1 × USB 3.0

General

• Power Supply
  • 12 VDC
• Power Consumption
  • ≤ 10 W
• Working Temperature
  • -10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity
  • 10% to 90%
• Dimension
  • 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
• Weight
  • ≤ 2 kg (4.4 lb)
