Description

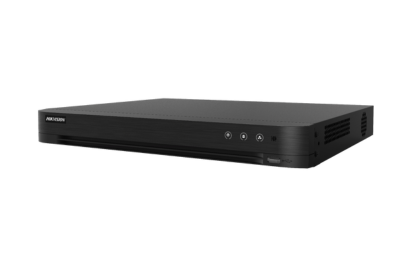

8-ch 5 MP 1U H.265 AcuSense DVR
- 8 channels and 2 HDDs 1U AcuSense DVR
- False alarm reduction by human and vehicle target classification based on deep learning
- Efficient H.265 pro+ compression technology
- Encoding abilty up to 8 MP @ 8 fps, 5 MP @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 16 network cameras can be connected.
Motion Detection 2.0
- Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights.
- Quick search by object or event type is supported.
Perimeter Protection
- Human/Vehicle Analysis: Up to 4-ch
- Facial Detection: Facial Detection And Capture, face picture detection, face picture search
Video And Audio
-
IP Video Input: 4-ch (up to 12-ch), up to 8 MP resolution
- Enhanced IP mode on: 8-ch (up to 16-ch), each up to 4 Mbps
- Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input: 8-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
-
HDMI Output:
- HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- HDMI/VGA simultaneous output
- CVBS Input: PAL/NTSC
- CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Synchronous Playback: 8-ch
HDTVI Input
- 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
AHD Input
- 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
HDCVI Input
- 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
Audio
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Recording
- Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
-
Frame Rate:
- Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps, 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
- Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Video Bitrate: 32 Kbps to 10 Mbps
- Dual-Stream: Support
- Stream Type: Video, Video & Audio
- Audio Compression: G.711u
- Audio Bitrate: 64 Kbps
Network
- Total Bandwidth: 128Mbps
- Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Remote Connection: 64
- Network Interface: 1 × RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
- SATA: 2 SATA interface, Up to 10 TB capacity for each disk
- Serial Interface: RS-485 (half-duplex)
- USB Interface: 1 × USB 2.0, 1 × USB 3.0
General
- Power Supply: 12 VDC
- Consumption: ≤ 15 W
- Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity: 10% to 90%
- Dimension (W × D × H): 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
- Weight: ≤ 2 kg (4.4 lb)
