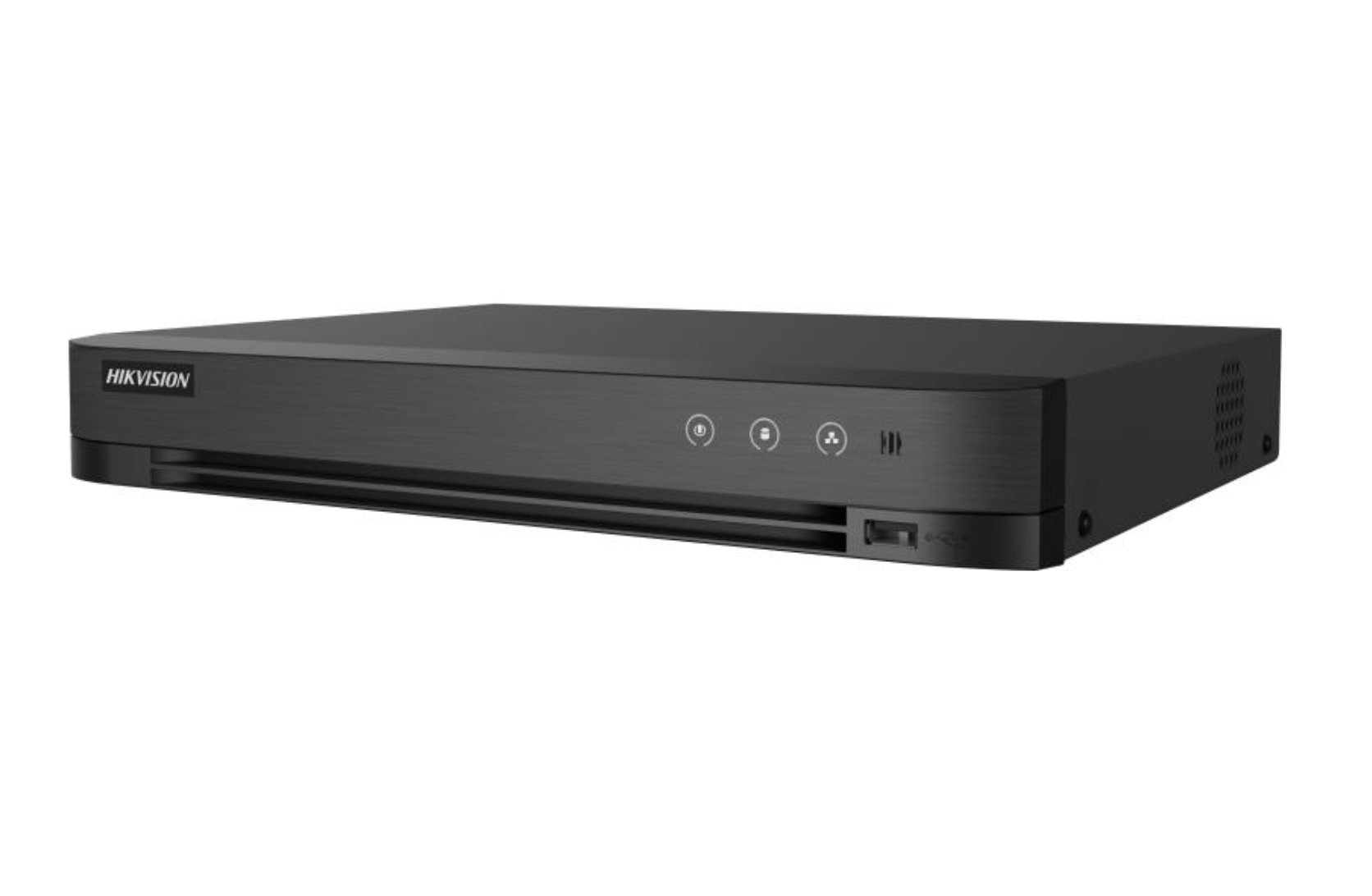

Hikvision iDS-7216HUHI-M2/X 16-Channel 5MP AcuSense DVR

Key Features

• 16-channel analog camera input

• Supports up to 32 IP camera inputs

• Supports IP cameras up to 8MP resolution

• 5-in-1 adaptive video input: HDTVI, AHD, HDCVI, CVBS and IP

• Up to 8-channel perimeter protection with human and vehicle classification

• Up to 4-channel facial recognition and face capture

• Supports up to 16 face picture libraries

• 8-channel AcuSearch technology

• Motion Detection 2.0 supported on all analog channels

• Encoding up to 8MP at 8 fps and 5MP or 3K at 12 fps

• Decoding capability up to 24-channel 1080p at 30 fps

• Efficient H.265 Pro+ compression technology

• 2 SATA interfaces supporting up to 12TB per HDD

• HDMI output up to 4K at 30Hz

• Up to 128 remote connections

• Hik-Connect remote access support

• Datasheet

Perimeter Protection

• Human and Vehicle Analysis: Up to 8 channels

• Deep learning-based target classification

• Advanced perimeter protection model supported

Facial Detection

• Face detection and capture supported

• Face picture search supported

• Up to 4-channel face picture capture

Facial Recognition

• Face Picture Libraries: Up to 16 libraries

• Face library data is backed up to both HDD and flash storage

• HDD failure does not result in loss of the face picture library

• Face Picture Comparison Alarm: Up to 4 channels using HD analog cameras

Motion Detection 2.0

• Enabled by default on all analog channels

• Deep learning-based human and vehicle classification

• Reduces false alarms caused by leaves, lighting changes and other non-target movement

• Supports quick search by object type or event type

Video Inputs

• Analog Video Input: 16 channels

• Interface: BNC, 1.0 Vp-p, 75Ω

• Supports coaxitron connection

• IP Video Input: 16 channels, expandable up to 32 channels

• Maximum IP Camera Resolution: 8MP

• Maximum IP Bitrate: 4 Mbps per channel

• Supported IP Compression: H.265+, H.265, H.264+ and H.264

HDTVI Input

• 8MP: 3840 × 2160 at 12/15 fps

• 3K: 2960 × 1665 at 20/25 fps

• 3K: 3328 × 1504 at 20 fps

• 5MP: 2560 × 1944 at 20 fps

• 4MP: 2560 × 1440 at 25/30 fps

• 1080p: 25/30 fps

• 720p: 25/30 fps

AHD Input

• 5MP: 2560 × 1944 at 20 fps

• 4MP: 2560 × 1440 at 25/30 fps

• 1080p: 25/30 fps

• 720p: 25/30 fps

HDCVI Input

• 8MP: 3840 × 2160 at 12/15 fps

• 3K: 2880 × 1620 at 25 fps

• 5MP: 2592 × 1944 at 20 fps

• 4MP: 2560 × 1440 at 25/30 fps

• 1080p: 25/30 fps

• 720p: 25/30 fps

Video Outputs

• HDMI Output: 1 channel

• HDMI Resolutions:

  • 3840 × 2160 at 30Hz

  • 2560 × 1440 at 60Hz

  • 1920 × 1080 at 60Hz

  • 1280 × 1024 at 60Hz

  • 1280 × 720 at 60Hz

• VGA Output: 1 channel

• VGA Resolutions:

  • 1920 × 1080 at 60Hz

  • 1280 × 1024 at 60Hz

  • 1280 × 720 at 60Hz

• HDMI and VGA simultaneous output supported

• CVBS Output: 1-channel BNC

• PAL Resolution: 704 × 576

• NTSC Resolution: 704 × 480

• Synchronous Playback: 16 channels

Recording

• Video Compression: H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264

• Encoding Resolutions:

  • 8MP

  • 5MP

  • 3K

  • 4MP

  • 3MP

  • 1080p

  • 720p

  • WD1

  • 4CIF

  • VGA

  • CIF

• Main Stream Frame Rates:

  • 8MP at 8 fps

  • 3K at 12 fps

  • 5MP at 12 fps

  • 4MP at 15 fps

  • 8MP Lite at 15 fps

  • 3MP at 18 fps

  • 1080p, 720p, WD1, 4CIF, VGA and CIF at 25/30 fps

• Sub-Stream: WD1, 4CIF and CIF at 25/30 fps

• Video Bitrate: 32 Kbps to 10 Mbps

• Dual Stream: Main stream or sub-stream

• Stream Type: Video or video and audio

Audio

• Audio Input: 1-channel RCA

• Optional Audio Input: Up to 16 channels

• Audio over Coax: Up to 16 channels

• Audio Output: 1-channel RCA

• Two-Way Audio: 1-channel RCA using the audio input

• Audio Compression: G.711u

• Audio Bitrate: 64 Kbps

Decoding

• Decoding Capability: Up to 24-channel 1080p at 30 fps

Network

• Total Bandwidth: 256 Mbps

• Remote Connections: Up to 128

• Network Interface: 1 × RJ45 10/100/1000 Mbps self-adaptive Ethernet port

• Supported Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF and ISUP

Storage

• SATA Interfaces: 2

• Maximum HDD Capacity: Up to 12TB per HDD

• Maximum Total Storage Capacity: Up to 24TB

Interfaces

• RS-485: 1 × half-duplex interface

• Front USB: 1 × USB 2.0

• Rear USB: 2 × USB 3.0

• Alarm Input/Output: Optional

Power

• Power Supply: 12 VDC, 5 A

• Power Consumption: Maximum 15W without HDD

Operating Conditions

• Working Temperature: -10°C to 55°C

• Working Humidity: 10% to 90%

Physical Specifications

• Dimensions: 384 × 317 × 52 mm

• Weight: Maximum 2.1 kg

• Form Factor: 1U
