Description

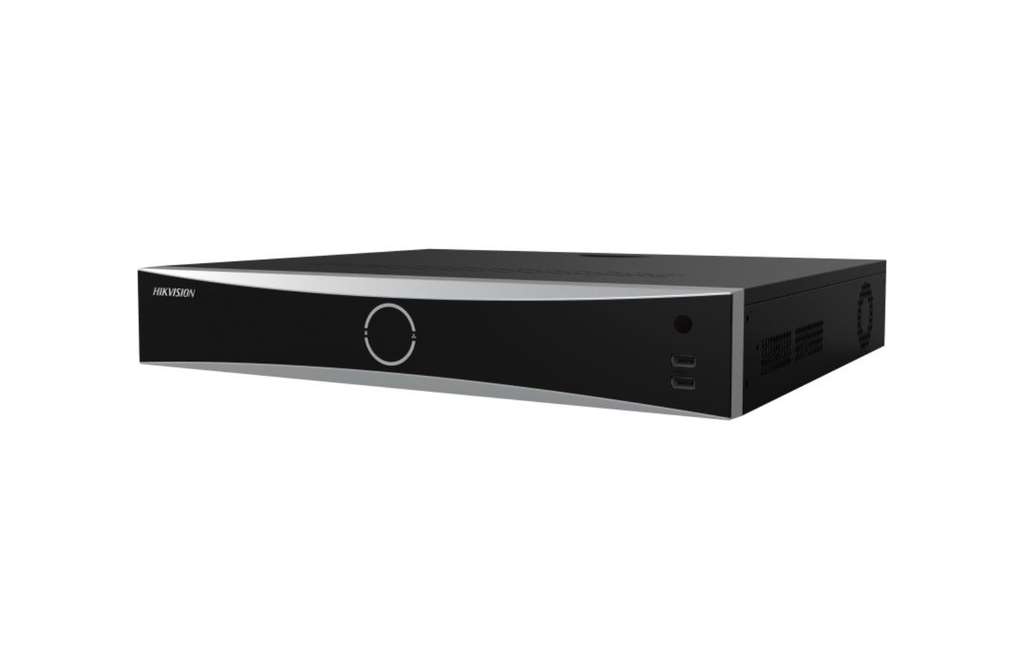

32-ch 1.5U 16 PoE 8K DeepinMind NVR
Key Features
• Supports up to 32 IP camera channels
• Built-in 16 PoE ports for plug-and-play connection
• Supports 8K HDMI video output
• Supports H.265+/H.265/H.264+/H.264 video compression
• Deep learning analytics including facial recognition, perimeter protection, video structuralization and AcuSearch
• Supports up to 24-ch perimeter protection
• Supports up to 16-ch facial recognition for video stream
• Supports up to 32-ch facial recognition for face picture comparison
• Supports up to 12-ch video structuralization
• Supports connection of up to 8 IP speakers
• Incoming bandwidth up to 320 Mbps
• Outgoing bandwidth up to 400 Mbps
• Supports up to 4 SATA HDDs plus 1 eSATA
• Up to 16 TB per HDD
AI Functions
• AI by NVR:
• Facial recognition
• Perimeter protection
• Video structuralization
• AcuSearch
• AI by camera:
• Facial recognition
• Perimeter protection
• Video structuralization
• AcuSearch
• Motion Detection 2.0
• ANPR
• People counting
• VCA
• AI engines: 2
• Each engine can run an intelligent algorithm
• Engine mode is adjustable
Facial Recognition
• Face picture comparison
• Human face capture
• Face picture search
• Face picture library support:
• Up to 16 face picture libraries
• Up to 100,000 face pictures in list library
• Up to 10,000 face pictures in stranger library
• Up to 5,000,000 face pictures in face capture
• Max picture size: 4 MB each
• Total face picture capacity: 20 GB
• Face picture comparison from camera:
• Up to 32 channels
• 24 channels per engine
• Comparison speed: 48 pictures per second
• Facial detection and analytics performance:
• Up to 16-ch at 2 MP
• Or 8-ch at 4 MP
• Or 4-ch at 8 MP
AcuSearch
• By camera:
• All channels supported
• Up to 691,200 targets per day
• Camera must support AcuSearch
• By NVR:
• Up to 8 channels
• Up to 691,200 targets per day
Perimeter Protection
• By NVR:
• Up to 24-ch at 2 MP
• Or 16-ch at 4 MP
• Or 8-ch at 8 MP
• Without Large Model
• By camera:
• All channels supported
• Powered by Large Model
Video Structuralization
• Structured analysis performance:
• Up to 12-ch at 2 MP
• Or 8-ch at 4 MP
• Or 4-ch at 8 MP
• Face picture comparison:
• 16 channels
• Comparison speed: 32 pictures per second
ANPR
• ANPR by camera on all channels
• Plate attributes:
• Plate number
• Plate color
• Plate type
• Vehicle attributes:
• Vehicle brand
• Vehicle color
• Vehicle type
Video and Audio
• IP video input: 32 channels
• Maximum camera resolution: 32 MP
• Incoming bandwidth: 320 Mbps
• Outgoing bandwidth: 400 Mbps
• Video output mode:
• HDMI1 / VGA1 simultaneous output
• HDMI1 / HDMI2 independent output
• CVBS output:
• 1-ch BNC
• PAL: 704 × 576
• NTSC: 704 × 480
• Audio output: 1-ch RCA
• Two-way audio: 1-ch RCA
Video Output
• HDMI 1 output:
• 8K (7680 × 4320) @ 30Hz
• 4K (3840 × 2160) @ 60Hz / 30Hz
• 2K (2560 × 1440) @ 60Hz
• 1920 × 1080 @ 60Hz
• HDMI 2 output:
• 4K (3840 × 2160) @ 60Hz / 30Hz
• 2K (2560 × 1440) @ 60Hz
• 1920 × 1080 @ 60Hz
• VGA output:
• 1920 × 1080 @ 60Hz
• Note:
• When HDMI 1 is set to 8K, HDMI 2 maximum output is 1080p
Decoding
• Decoding formats:
• H.265
• H.265+
• H.264
• H.264+
• Decoding capability:
• 2-ch @ 32 MP (30 fps)
• 2-ch @ 24 MP (30 fps)
• 4-ch @ 16 MP (30 fps)
• 8-ch @ 8 MP (30 fps)
• 16-ch @ 4 MP (30 fps)
• 32-ch @ 2 MP (30 fps)
• Synchronous playback: 16 channels
• Recording resolution support:
• 32 MP
• 24 MP
• 12 MP
• 8 MP
• 6 MP
• 5 MP
• 4 MP
• 3 MP
• 1080p
• UXGA
• 720p
• VGA
• 4CIF / DCIF / 2CIF / CIF / QCIF
Network
• Remote connection: 128 users
• Network protocols:
• TCP/IP
• DHCP
• IPv4 / IPv6
• DNS / DDNS
• NTP
• RTSP
• SADP
• SMTP
• SNMP
• NFS
• iSCSI
• ISUP
• UPnP
• HTTP / HTTPS
• ONVIF 2.2
• OTAP
• API support:
• ONVIF Profile S / G
• SDK
• ISAPI
• Compatible browsers:
• IE11
• Chrome v57+
• Firefox v52+
• Safari v12+
• Edge v89+
• Network interface:
• 1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet port
• Camera access protocols:
• ONVIF 2.5
• RTSP
PoE
• 16 × RJ-45 10/100 Mbps self-adaptive PoE interfaces
• PoE standard: IEEE 802.3af/at
• PoE budget: ≤ 200 W
Storage and Interfaces
• SATA: 4 SATA interfaces for 3.5-inch HDD
• eSATA: 1 eSATA interface
• HDD capacity: up to 16 TB each
• Serial interface:
• 1 × RS-232
• 2 × RS-485 (half-duplex)
• USB:
• Front panel: 2 × USB 2.0
• Rear panel: 1 × USB 3.0
• Alarm input/output: 16 in / 4 out
General
• GUI languages: supports multiple languages including English, Japanese, Korean, Arabic, Traditional Chinese, Thai, Vietnamese, and more
• Power supply: 100 to 240 VAC, 50/60 Hz
• Power consumption: ≤ 50 W (without HDD, PoE off)
• Working temperature: -10°C to 55°C
• Working humidity: 10% to 90%
• Dimensions: 445 × 400 × 71 mm
• Weight: ≤ 5 kg (without HDD)
Certifications
• CE
• FCC
• IC
• CB
• KC
• UL
• RoHS
• REACH
• WEEE
• RCM
• UKCA
• LOA
• BIS
