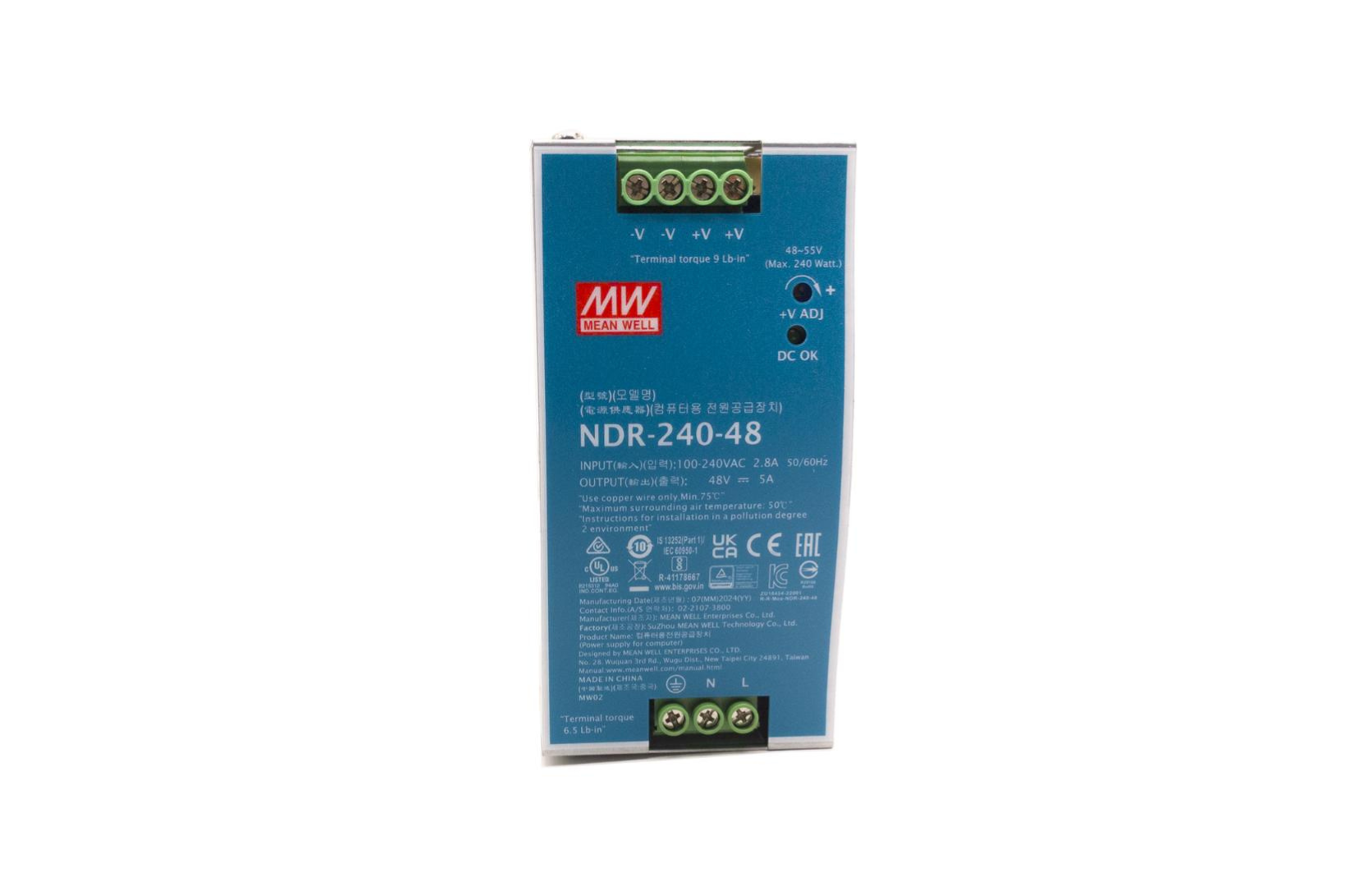

Industrial 48V 240W Power Supply Unit (DIN Rail / Control PSU)
Applications
- Industrial control systems
- Semiconductor fabrication equipment
- Factory automation
- Electro-mechanical equipment
- Datasheet
Output
-
DC Voltage: 48V
-
Rated Current: 5A
-
Max Current: 6.3A
-
Rated Power: 240W
-
Ripple & Noise: 150mVp-p
-
Voltage Adjustment: 48V–55V
-
Voltage Tolerance: ±1.0%
-
Line Regulation: ±0.5%
-
Load Regulation: ±1%
Timing
- Setup / rise: 1500ms / 100ms @ 230VAC
- Setup / rise: 3000ms / 100ms @ 115VAC
- Hold-up time: 28ms @ 230VAC
- Hold-up time: 22ms @ 115VAC
Input
-
Voltage Range: 90–264VAC / 127–370VDC
-
Frequency: 47–63Hz
-
Efficiency: 90%
-
AC Current: 2.5A @ 115VAC / 1.3A @ 230VAC
-
Inrush Current: 20A @ 115VAC / 35A @ 230VAC
-
Leakage Current: <1mA @ 240VAC
Protection
Over Voltage
- Protection range: 56–65V
- Shutdown output
- Recover by power reset
Over Temperature
- Shutdown output
- Recover by power reset
Environment
-
Working Temp: -20°C to +70°C
-
Working Humidity: 20%–95% RH
-
Storage Temp: -40°C to +85°C
-
Storage Humidity: 10%–95% RH
-
Temp Coefficient: ±0.03%/°C
-
Vibration: 10–500Hz, 2G
Safety & EMC
Safety
- UL508
- TUV
- EN62368-1
- EN60204-1 compliant
Isolation
- I/P to O/P: 3KVAC
- I/P to FG: 2KVAC
- O/P to FG: 0.5KVAC
- Isolation resistance: >100MΩ
EMC
- EN55032
- CISPR32
- EN61000
- Class B compliant
Reliability
-
MTBF: 1,645,200 hours (Telcordia)
-
MTBF: 230,200 hours (MIL-HDBK-217F)
Physical
-
Dimensions: 63 × 125.2 × 113.5 mm
-
Weight: 1kg
-
Packing: 12 pcs / 13kg
