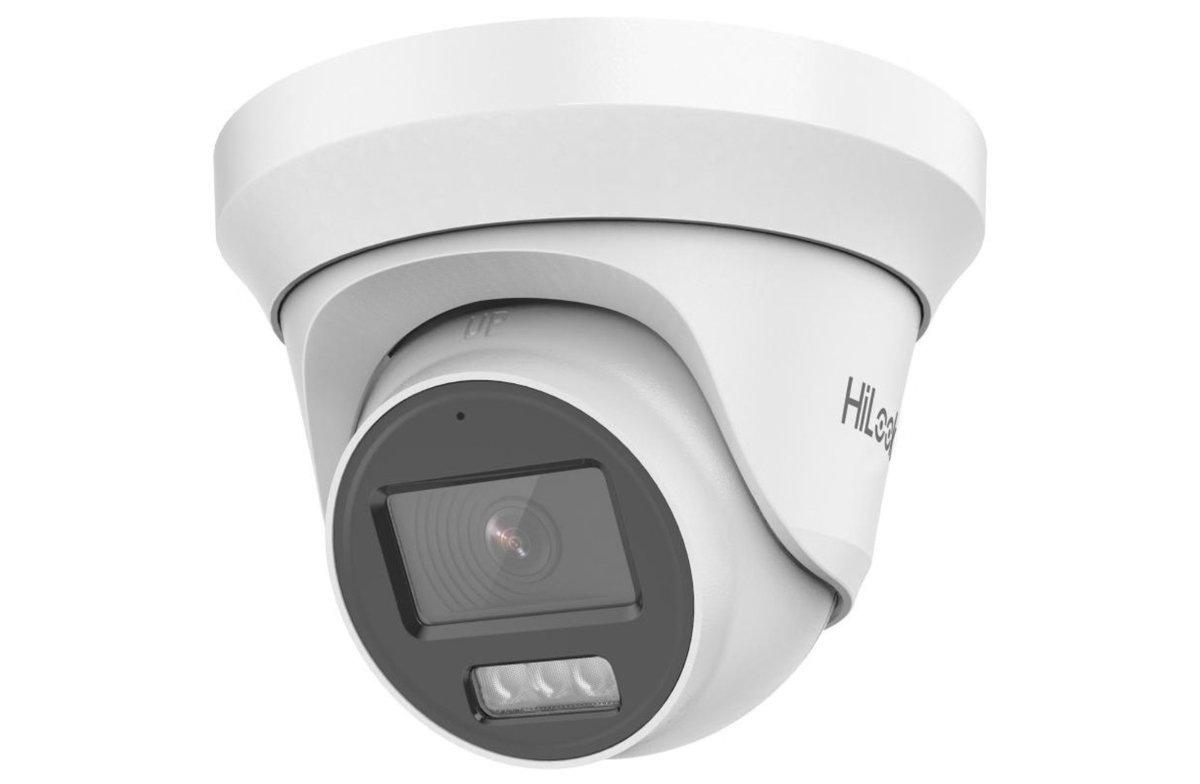

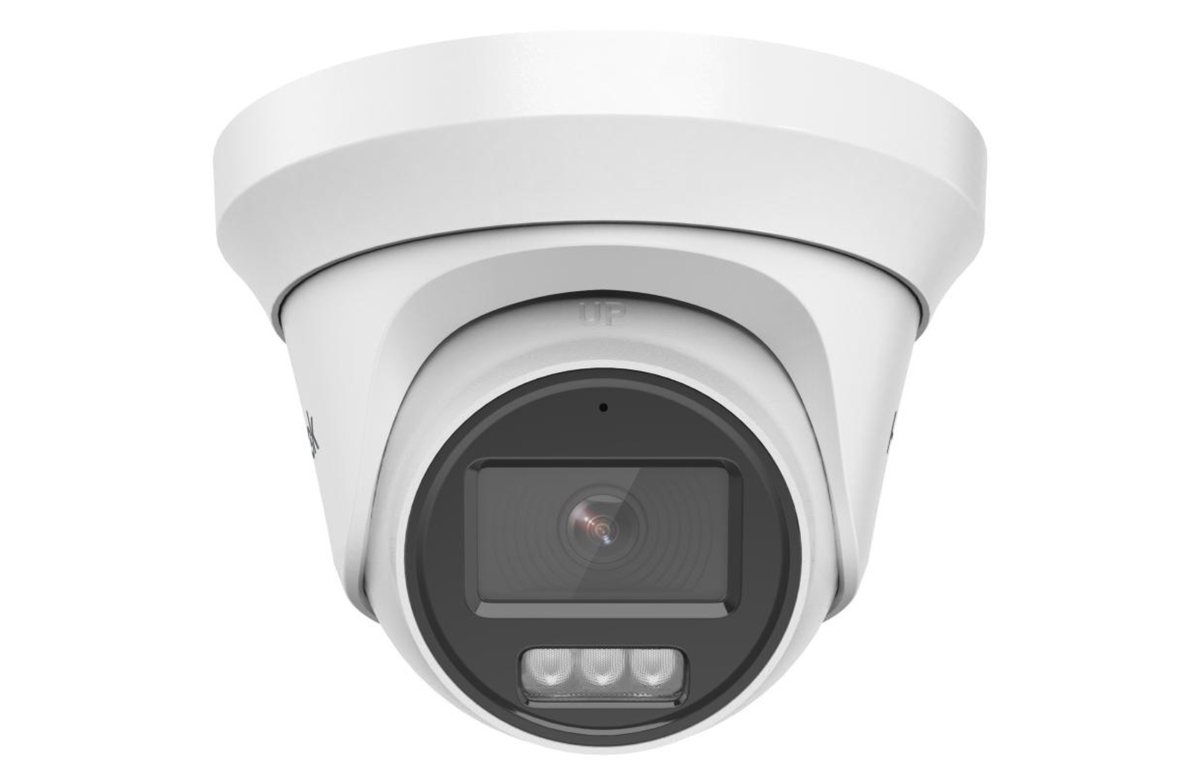

Hilook THC-T257-LMS 3K Dual Light Audio Fixed Turret Camera

3K Dual Light Audio Fixed Turret Camera

Key Features

• 3K high-resolution video

• 2.8mm fixed lens options

• Smart Dual Light with IR and white light

• Up to 40m IR illumination

• Up to 20m white light illumination

• Built-in microphone

• Audio pickup range up to 5m

• Digital WDR

• Supports TVI, AHD, CVI and CVBS video output

• Metal body and enclosure

• IP66 weatherproof protection

• HIKVISION-C communication

• Datasheet

Specifications

Lens

• Lens Type: 2.8mm

• Lens Mount: M12

Field of View

• 2.8mm: 104.9° horizontal, 67.3° vertical, 129.8° diagonal

Audio

• Built-in Microphone: 1

• Audio Pickup Range: Up to 5m

Smart Lighting

• IR Range: Up to 40m

• White Light Range: Up to 20m

• Supplement Light: Smart, IR and white light

Video

• TVI: 3K @ 20fps, 4MP @ 25/30fps, 1080p @ 25/30fps

• AHD: 5MP @ 20fps, 4MP @ 25/30fps

• CVI: 4MP @ 25/30fps

• CVBS: PAL / NTSC

• Video Output: Switchable TVI / AHD / CVI / CVBS


• Day/Night Mode: Auto / Colour

• WDR: Digital WDR

• Image Enhancement: DWDR, BLC, HLC, Global

• Image Settings: Brightness, Sharpness, Smart IR

• White Balance: Auto / Manual

• AGC: Supported

Power

• Power Supply: 12VDC ±25%

• Maximum Consumption: 3.3W

Build

• Material: Metal body and enclosure

• Dimensions: Ø127.9 × 97.8mm

• Weight: Approx. 476g

• Communication: HIKVISION-C

Operating Conditions

• Operating Temperature: -40°C to 60°C

• Operating Humidity: 90% or less, non-condensing

Protection

• IP66 weatherproof
