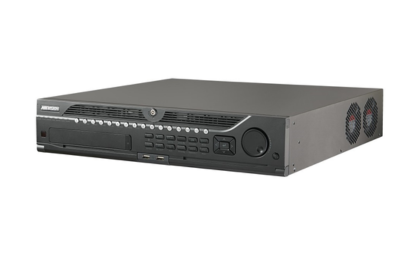

Hikvision TVI4.0 iDS-7332HUHI-M4/S 32ch DVR, 32 TVI or up to 64 IPC 3TB HDD

32-ch 5MP 1.5U H.265 AcuSense DVR

• Deep learning-based perimeter protection
• Deep learning-based motion detection 2.0 for all analog channels
• Up to 32-ch analog camera inputs and 4 SATA interfaces
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
• Up to 8 MP@8 fps/5 MP@12 fps encoding capability
• HDTVI/AHD/CVI/CVBS/IP video inputs
• POS triggered recording and POS information overlay
• Up to 64-ch network camera inputs





Motion Detection 2.0

• Human/Vehicle Analysis
  • Deep learning-based motion detection 2.0 is enabled by default for all analog channels.
  • Classifies human and vehicle, reducing false alarms from objects like leaves and lights.
• Quick Search
  • Supported by object or event type.

Perimeter Protection

• Human/Vehicle Analysis
  • Up to 16-ch (for specific channels: 1/2/3/4/9/10/11/12/17/18/19/20/25/26/27/28 only).

Video And Audio

• IP Video Input
  • 32-ch (up to 64-ch).
  • Up to 12 MP resolution.
  • Support for H.265+/H.265/H.264+/H.264 IP cameras.
• Analog Video Input
  • 32-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection.
• Incoming Bandwidth
  • 320 Mbps
• Outgoing Bandwidth
  • 256 Mbps

HDTVI Input

• Up to 8 MP, 3K, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60.

AHD Input

• Up to 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30.

HDCVI Input

• Up to 4 MP, 1080p25, 1080p30, 720p25, 720p30.

CVBS Input

• PAL/NTSC.

CVBS Output

• 1-ch, BNC (1.0 Vp-p, 75 Ω); Resolution: PAL: 704 × 576, NTSC: 704 × 480.

HDMI 1 Output

• 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz.

HDMI 2 Output

• 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz.

Video Output Mode

• HDMI1/VGA simultaneous output, HDMI2/VGA independent output.

Audio

• Audio Input
  • 4-ch, RCA (2.0 Vp-p, 1 KΩ).
• Audio Output
  • 1-ch, RCA (Linear, 1 KΩ).
• Two-Way Audio
  • 1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent).

Synchronous Playback

• 16-ch.

VGA Output

• 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz.

Recording

• Video Compression
  • H.265 Pro+/H.265 Pro/H.265/H.264+/H.264.
• Encoding Resolution
  • 8 MP/3K/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF.
• Frame Rate
  • Main stream:
    • 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps.
    • 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N).
  • Sub-stream:
    • WD1/4CIF/CIF@25 fps (P)/30 fps (N).
• Video Bitrate
  • 32 Kbps to 10 Mbps.
• Dual-Stream
  • Support for Video, Video & Audio.
• Audio Compression
  • G.711u.
• Audio Bitrate
  • 64 Kbps.

Network

• Remote Connection
  • 128.
• Network Protocol
  • TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP.
• Network Interface
  • 2 × RJ45 10M/100M/1000M self-adaptive Ethernet interface.

Auxiliary Interface

• SATA
  • 4 SATA interfaces.
• ESATA
  • Support.
• Serial Interface
  • RS-232, RS-485 (full-duplex), Keyboard.
• Alarm In/Out
  • 16/4.
• USB Interface
  • Front panel: 2 × USB 2.0, Rear panel: 1 × USB 3.0.

General

• Power Supply
  • 100 to 240 VAC, 50 to 60 Hz.
• Power Consumption
  • ≤ 55 W (without HDD).
• Working Temperature
  • -10 °C to +55 °C (+14 °F to +131 °F).
• Working Humidity
  • 10% to 90%.
• Dimension (W × D × H)
  • 445 × 400 × 71 mm (17.5 × 15.7 × 2.8 inches).
• Weight
  • ≤ 7 kg (without HDD, 15.4 lb).
