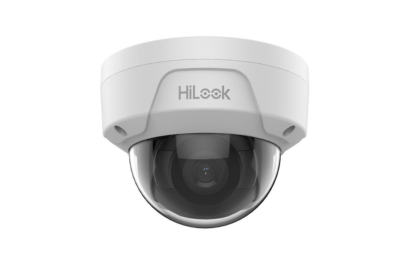

HiLook 4MP IPC-D140H Vandal Dome Network Camera

4 MP Fixed Dome Network Camera

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology to save bandwidth and storage
• Clear imaging against strong back light due to 120 dB true WDR technology
• Water and dust resistant (IP67) and vandal resistant (IK10)
• 3D DNR technology delivers clean and sharp images
• Easy installation with Power over Ethernet (PoE) technology

Camera Specifications

Image Sensor

• Type: 1/3" Progressive Scan CMOS
• Maximum Resolution: 2560 × 1440
• Minimum Illumination:
  • Color: 0.01 Lux @(F2.0, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR Cut Filter
• Angle Adjustment:
  • Pan: 0° to 355°
  • Tilt: 0° to 75°

Lens

• Focal Length & Field of View (FOV):
  • 2.8 mm: Horizontal FOV 98.0°, Vertical FOV 53.1°, Diagonal FOV 114.7°
  • 4 mm: Horizontal FOV 78.7°, Vertical FOV 43.1°, Diagonal FOV 92.3°
• Lens Mount: M12
• Focus: Fixed
• Aperture: F2.0
• Lens Type: Fixed focal lens, 2.8 mm and 4 mm optional
• Iris Type: Fixed

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• IR Wavelength: 850 nm
• Smart Supplement Light: Yes

Video

• Main Stream:
  • 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720)
  • 60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (640 × 480, 640 × 360)
  • 60 Hz: 30 fps (640 × 480, 640 × 360)
• Video Compression:
  • Main stream: H.265, H.264, H.265+, H.264+
  • Sub-stream: H.265, H.264, MJPEG
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Region of Interest (ROI): 1 fixed region for main stream

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface, ISAPI
• User/Host: Up to 32 users; 3 levels: Administrator, Operator, User
• Client: iVMS-4200, Hik-Connect
• Web Browser:
  • Plug-in required for live view: IE 10+
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+
  • Local service: Chrome 57.0+, Firefox 52.0+


• Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance (adjustable by client software or web browser)
• Day/Night Switch: Auto, Schedule, Day, Night
• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: BLC, 3D DNR

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic Event: Motion detection, video tampering alarm, exception
• Linkage: Upload to FTP, notify surveillance center, send email

General

• Power:
  • 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
  • PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
• Dimensions: Ø111 mm × 82.4 mm (Ø 4.4" × 3.2")
• Package Dimensions: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
• Weight: Approx. 360 g (0.8 lb.)
• With Package Weight: Approx. 560 g (1.2 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F); Humidity: 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F); Humidity: 95% or less (non-condensing)
• Language: English, Ukrainian
• General Functions: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval

• EMC:
  • FCC SDoC (47 CFR Part 15, Subpart B)
  • CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014)
  • RCM (AS/NZS CISPR 32: 2015)
  • IC VoC (ICES-003: Issue 6, 2016)
  • KC (KN 32: 2015, KN 35: 2015)
• Safety:
  • UL (UL 60950-1)
  • CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
  • CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
  • BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
• Environment:
  • CE-RoHS (2011/65/EU)
  • WEEE (2012/19/EU)
  • Reach (Regulation (EC) No 1907/2006)
• Protection:
  • IP67 (IEC 60529-2013)
  • IK10 (IEC 62262:2002)
