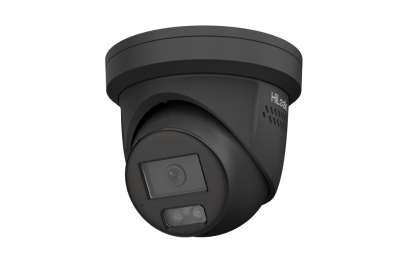

HiLook 6MP IPC-T269H-MU/SL All in One Camera with Blue / Red Strobe / Audio (ACDC) (BLACK)

6 MP All-in-One Fixed Turret Network Camera

• High quality imaging with 6 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Human and vehicle targets classification based on deep learning
• Active red and blue strobe light and audio alarm to warn intruders off
• Provide real-time security via built-in two-way audio
• 24/7 colorful imaging
• Smart Dual -light Supplement,auto switch IR to White light supplement when event triggered
• Water and dust resistant (IP67)
• Data Sheet

Camera Specifications

• Image Sensor:
  1/2.4" Progressive Scan CMOS

• Max. Resolution:
  3200 × 1800

• Min. Illumination:

  • Color: 0.003 Lux @ (F1.6, AGC ON), 0 Lux with white light
  • B/W: 0 Lux with IR

• Shutter Time:
  1/3 s to 1/100,000 s

• Day & Night:
  IR cut filter

• Angle Adjustment:

  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens Specifications

• Lens Type:
  Fixed lens, 2.8 mm, 4 mm, and 6 mm optional

• Iris Type:
  Fixed

• Focal Length & FOV:

  • 2.8 mm: Horizontal FOV 105°, Vertical FOV 55°, Diagonal FOV 127°
  • 4 mm: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96°
  • 6 mm: Horizontal FOV 51°, Vertical FOV 26°, Diagonal FOV 59°

• Aperture:
  F1.6

• Lens Mount:
  M12

Illuminator Specifications

• Supplement Light Type:
  White light & IR

• Supplement Light Range:

  • IR Range: Up to 30 m
  • White light Range: Up to 30 m

• Smart Supplement Light:
  Yes

Video Specifications

• Main Stream:

  • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream:

  • 50 Hz: 25 fps (640 × 480, 640 × 360)
  • 60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream:

  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    Third stream is supported under certain settings.

• Video Compression:

  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264/MJPEG
  • Third Stream: H.265/H.264
    Third stream is supported under certain settings.

• Video Bit Rate:
  32 Kbps to 16 Mbps

• H.264 Type:
  Baseline Profile, Main Profile, High Profile

• H.265 Type:
  Main Profile

• Bit Rate Control:
  CBR, VBR

• Scalable Video Coding (SVC):
  H.264 and H.265 encoding

• Region of Interest (ROI):
  1 fixed region for main stream and sub-stream

Audio Specifications

• Environment Noise Filtering:
  Yes

• Audio Sampling Rate:
  8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

• Audio Compression:
  G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC

• Audio Bit Rate:

  • 64 Kbps (G.711ulaw/G.711alaw)
  • 16 Kbps (G.722.1)
  • 16 Kbps (G.726)
  • 32 to 192 Kbps (MP2L2)
  • 8 to 320 Kbps (MP3)
  • 16 to 64 Kbps (AAC)

Network Specifications

• Simultaneous Live View:
  Up to 6 channels

• API:
  Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK

• Protocols Supported:
  TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP

• User/Host Capacity:
  Up to 32 users; 3 levels: administrator, operator, and user

• Network Storage:
  Supports microSD/SDHC/SDXC card (up to 256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

• Client Software:
  iVMS-4200, Hik-Connect

• Web Browser Compatibility:

  • Plug-in required live view: IE 10+
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+
  • Local service: Chrome 57.0+, Firefox 52.0+

Image Specifications

• Day/Night Switch:
  Day, Night, Auto, Schedule

• Image Enhancement:
  BLC, HLC, 3D DNR

• Image Settings:
  Mirror, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser

• Privacy Mask:
  4 regions of privacy masks

• Wide Dynamic Range (WDR):
  120 dB

Interface Specifications

• Alarm:
  1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)

• Audio:

  • 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
  • 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Built-in Microphone:
  Yes

• Built-in Speaker:
  Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB

• On-Board Storage:
  Built-in microSD/SDHC/SDXC slot, up to 256 GB

• Reset Key:
  Yes

• Ethernet Interface:
  1 RJ45 10 M/100 M self-adaptive Ethernet port

Event Management

• Basic Event:
  Motion detection (human and vehicle targets classification), video tampering alarm, exception

• Smart Event:
  Line crossing detection (human and vehicle targets classification)

• Linkage Actions:
  Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

General Specifications

• Language Support:
  33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General Functions:
  Anti-flicker, heartbeat, password protection, password reset via email

• Storage Conditions:
  -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)

• Startup and Operating Conditions:
  -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)

• Power Supply:

  • 12 VDC ± 25%, 0.70 A, max. 8.4 W, Ø5.5 mm coaxial power plug, reverse polarity protection
  • PoE: IEEE 802.3af, Class 3, max. 9.7 W

• Material:
  Metal except for trim ring

• Dimensions:
  Ø138.3 mm × 112.1 mm (Ø5.4" × 4.4")

• Package Dimensions:
  170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")

• Weight:
  Approx. 820 g (1.8 lb.)

• Weight with Package:
  Approx. 1150 g (2.5 lb.)

Approvals

• EMC:

  • FCC: 47 CFR Part 15, Subpart B
  • CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014
  • RCM: AS/NZS CISPR 32: 2015
  • IC: ICES-003: Issue 7
  • KC: KN32: 2015, KN35: 2015

• Safety:

  • UL (UL 60950-1)
  • CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
  • CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)

• Environment:

  • CE-RoHS: 2011/65/EU
  • WEEE: 2012/19/EU
  • Reach: Regulation (EC) No 1907/2006

• Protection:
  IP67: IEC 60529-2013
