Description

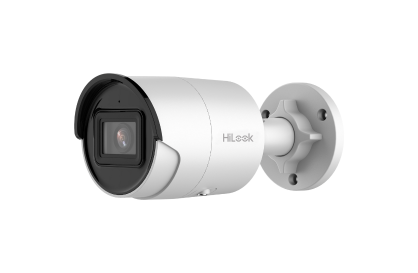

6 MP AI Fixed Bullet Network Camera
- High quality imaging with 6 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 120 dB WDR technology
- Focusing on human and vehicle classification based on deep learning
- -U: Built-in microphone for real-time audio security
- Water and dust resistant (IP67)
Camera Specifications
-
Image Sensor:
1/2.8" Progressive Scan CMOS -
Maximum Resolution:
3200 × 1800 -
Minimum Illumination:
- Color: 0.005 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
-
Shutter Time:
1/3 s to 1/100,000 s -
Day & Night:
IR cut filter -
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens Specifications
-
Lens Type:
Fixed focal lens, 2.8 mm -
Focal Length & Field of View (FOV):
- Focal Length: 2.8 mm
- Horizontal FOV: 107°
- Vertical FOV: 57°
- Diagonal FOV: 128°
-
Lens Mount:
M12 -
Iris Type:
Fixed -
Aperture:
F1.6
DORI (Detection, Observation, Recognition, Identification) Distance
-
2.8 mm Lens:
- Detection: 73 m
- Observation: 29 m
- Recognition: 15 m
- Identification: 7 m
Illuminator
-
Supplement Light Type:
IR -
Supplement Light Range:
Up to 40 m -
Smart Supplement Light:
Yes -
IR Wavelength:
850 nm
Video Specifications
-
Main Stream:
- 50 Hz: 20 fps (3200 × 1800)
- 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream:
- 50 Hz: 25 fps (1280 × 720, 960 × 540, 640 × 480, 640 × 360)
-
Third Stream:
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Third stream is supported under certain settings.
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
-
Video Compression:
- Main Stream: H.265/H.264/H.264+/H.265+
- Sub-Stream: H.265/H.264/MJPEG
- Third Stream: H.265/H.264
Third stream is supported under certain settings.
-
Video Bit Rate:
32 Kbps to 16 Mbps -
H.264 Type:
Baseline Profile/Main Profile/High Profile -
H.265 Type:
Main Profile -
Bit Rate Control:
CBR/VBR -
Scalable Video Coding (SVC):
H.264 and H.265 encoding -
Region of Interest (ROI):
1 fixed region for main stream and sub-stream
Audio Specifications
-
Audio Compression:
- G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
-
Audio Bit Rate:
- 64 Kbps (G.711ulaw/G.711alaw)
- 16 Kbps (G.722.1)
- 16 Kbps (G.726)
- 16 Kbps to 64 Kbps (AAC)
- 32 to 192 Kbps (MP2L2)
- 8 to 320 Kbps (MP3)
-
Audio Sampling Rate:
- 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
-
Environment Noise Filtering:
Yes
Network Specifications
-
Protocols Supported:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP -
Simultaneous Live View:
Up to 6 channels -
API:
Open Network Video Interface (Profile S, Profile G), ISAPI, SDK -
User/Host Capacity:
Up to 32 users. 3 user levels: administrator, operator, and user -
Security Features:
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface -
Network Storage:
NAS (NFS, SMB/CIFS), auto network replenishment (ANR) -
Client Software:
iVMS-4200, Hik-Connect, Hik-Central -
Web Browser Compatibility:
- Plug-in required live view: IE 10, IE 11
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Local service: Chrome 57.0+, Firefox 52.0+
Image Settings
-
Image Parameters Switch:
Yes -
Image Settings:
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser -
Day/Night Switch:
Day, Night, Auto, Schedule -
Wide Dynamic Range (WDR):
120 dB -
Signal-to-Noise Ratio (SNR):
≥ 52 dB -
Image Enhancement:
BLC, HLC, 3D DNR
Interface Specifications
-
Ethernet Interface:
1 RJ45 10 M/100 M self-adaptive Ethernet port -
On-Board Storage:
Built-in memory card slot, support microSD card, up to 256 GB -
Built-in Microphone:
Yes -
Reset Key:
Yes
Event Management
-
Basic Events:
Motion detection (human and vehicle targets classification), video tampering alarm, exception -
Smart Events:
- Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))
- Face detection
-
Linkage Actions:
Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
General Specifications
-
Power Supply:
- 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
- PoE (802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.13 A, max. 7.2 W
-
Dimensions:
Ø70 mm × 161.7 mm (Ø2.8" × 6.4") -
Package Dimensions:
216 mm × 121 mm × 118 mm (8.6" × 4.8" × 4.7") -
Weight:
Approx. 485 g (1.1 lb.) -
With Package Weight:
Approx. 744 g (1.6 lb.) -
Storage Conditions:
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -
Startup and Operating Conditions:
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -
General Functions:
Anti-flicker, heartbeat, password reset via email, pixel counter -
Language Support:
33 languages, including English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Compliance & Approvals
-
EMC:
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) -
Safety:
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) -
Environment:
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) -
Protection:
IP67 (IEC 60529-2013)
