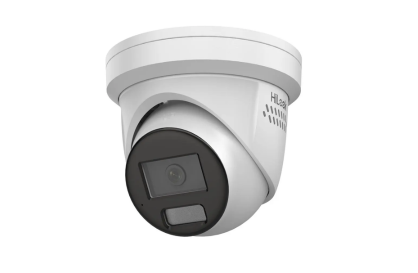

HiLook by Hikvision 6MP IPC-T269H-MU/SL 2.8mm All in One Camera with Blue / Red Strobe / Audio (ACDC) 2.8mm

Save $8.00

SKU: IPC-T269H-MU/SL-1

Color: White

Variant

Price:

$191.00 $199.00

Quantity:

6 MP All-in-One Fixed Turret Network Camera

High quality imaging with 6 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Human and vehicle targets classification based on deep learning
Active red and blue strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
24/7 colorful imaging
Smart Dual -light Supplement,auto switch IR to White light supplement when event triggered
Water and dust resistant (IP67)
Data Sheet

Image Sensor:
1/2.4" Progressive Scan CMOS
Max. Resolution:
3200 × 1800
Min. Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON), 0 Lux with white light
- B/W: 0 Lux with IR
Shutter Time:
1/3 s to 1/100,000 s
Day & Night:
IR cut filter
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 75°
- Rotate: 0° to 360°

Lens Type:
Fixed lens, 2.8 mm
Iris Type:
Fixed
Focal Length & FOV:
- 2.8 mm: Horizontal FOV 105°, Vertical FOV 55°, Diagonal FOV 127°
Aperture:
F1.6
Lens Mount:
M12

Supplement Light Type:
White light & IR
Supplement Light Range:
- IR Range: Up to 30 m
- White light Range: Up to 30 m
Smart Supplement Light:
Yes

Main Stream:
- 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream:
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  Third stream is supported under certain settings.
Video Compression:
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264/MJPEG
- Third Stream: H.265/H.264
  Third stream is supported under certain settings.
Video Bit Rate:
32 Kbps to 16 Mbps
H.264 Type:
Baseline Profile, Main Profile, High Profile
H.265 Type:
Main Profile
Bit Rate Control:
CBR, VBR
Scalable Video Coding (SVC):
H.264 and H.265 encoding
Region of Interest (ROI):
1 fixed region for main stream and sub-stream

Environment Noise Filtering:
Yes
Audio Sampling Rate:
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression:
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate:
- 64 Kbps (G.711ulaw/G.711alaw)
- 16 Kbps (G.722.1)
- 16 Kbps (G.726)
- 32 to 192 Kbps (MP2L2)
- 8 to 320 Kbps (MP3)
- 16 to 64 Kbps (AAC)

Simultaneous Live View:
Up to 6 channels
API:
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
Protocols Supported:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
User/Host Capacity:
Up to 32 users; 3 levels: administrator, operator, and user
Network Storage:
Supports microSD/SDHC/SDXC card (up to 256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client Software:
iVMS-4200, Hik-Connect
Web Browser Compatibility:
- Plug-in required live view: IE 10+
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Local service: Chrome 57.0+, Firefox 52.0+

Day/Night Switch:
Day, Night, Auto, Schedule
Image Enhancement:
BLC, HLC, 3D DNR
Image Settings:
Mirror, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
Privacy Mask:
4 regions of privacy masks
Wide Dynamic Range (WDR):
120 dB

Alarm:
1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)
Audio:
- 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
- 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Built-in Microphone:
Yes
Built-in Speaker:
Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB
On-Board Storage:
Built-in microSD/SDHC/SDXC slot, up to 256 GB
Reset Key:
Yes
Ethernet Interface:
1 RJ45 10 M/100 M self-adaptive Ethernet port

Basic Event:
Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event:
Line crossing detection (human and vehicle targets classification)
Linkage Actions:
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

Language Support:
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Functions:
Anti-flicker, heartbeat, password protection, password reset via email
Storage Conditions:
-30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
Startup and Operating Conditions:
-30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
Power Supply:
- 12 VDC ± 25%, 0.70 A, max. 8.4 W, Ø5.5 mm coaxial power plug, reverse polarity protection
- PoE: IEEE 802.3af, Class 3, max. 9.7 W
Material:
Metal except for trim ring
Dimensions:
Ø138.3 mm × 112.1 mm (Ø5.4" × 4.4")
Package Dimensions:
170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Weight:
Approx. 820 g (1.8 lb.)
Weight with Package:
Approx. 1150 g (2.5 lb.)

EMC:
- FCC: 47 CFR Part 15, Subpart B
- CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014
- RCM: AS/NZS CISPR 32: 2015
- IC: ICES-003: Issue 7
- KC: KN32: 2015, KN35: 2015
Safety:
- UL (UL 60950-1)
- CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
- CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
Environment:
- CE-RoHS: 2011/65/EU
- WEEE: 2012/19/EU
- Reach: Regulation (EC) No 1907/2006
Protection:
IP67: IEC 60529-2013
