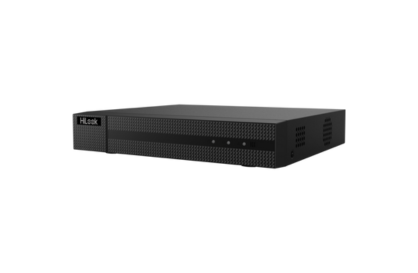

HiLook NVR-108MH-C-8P 8x PoE 8 Channel 4K HDMI, 1x SATA Network Video Recorder

8-ch 1U 8 PoE 4K NVR

• Up to 8-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
• Up to 80 Mbps incoming bandwidth
• Hilook NVR 7 Steps Setup

Video and Audio

• IP Video Input:
  8 channels

• HDMI Output:
  1 channel, supporting the following resolutions:

  • 4K (3840 × 2160) @ 30Hz
  • 1920 × 1080p @ 60Hz
  • 1600 × 1200 @ 60Hz
  • 1280 × 1024 @ 60Hz
  • 1280 × 720 @ 60Hz
  • 1024 × 768 @ 60Hz
    HDMI/VGA simultaneous output

• VGA Output:
  1 channel, supporting the following resolutions:

  • 1920 × 1080p @ 60Hz
  • 1600 × 1200 @ 60Hz
  • 1280 × 1024 @ 60Hz
  • 1280 × 720 @ 60Hz
  • 1024 × 768 @ 60Hz
    HDMI/VGA simultaneous output

• Video Output Mode:
  HDMI/VGA simultaneous output

• Incoming Bandwidth:
  80 Mbps

• Outgoing Bandwidth:
  80 Mbps

• Audio Output:
  1 channel, RCA (Linear, 1 KΩ)

• Two-Way Audio:
  1 channel, RCA (2.0 Vp-p, 1 KΩ)

---

Decoding

• Decoding Format:
  H.265+, H.265, H.264+, H.264

• Decoding Capability:
  4 channels @ 1080p

• Synchronous Playback:
  8 channels

• Recording Resolution:

  • 8 MP
  • 6 MP
  • 5 MP
  • 4 MP
  • 3 MP
  • 1080p
  • UXGA
  • 720p
  • VGA
  • 4CIF
  • DCIF
  • 2CIF
  • CIF
  • QCIF

---

Network

• Remote Connection:
  32 connections

• Network Protocols:
  TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

• Network Interface:
  1 × RJ-45 10/100 Mbps self-adaptive Ethernet interface

---

PoE

• PoE Interface:
  8 × RJ-45 10/100 Mbps self-adaptive Ethernet interface

• Power:
  ≤ 75W

---

Auxiliary Interface

• SATA Interface:
  1 SATA interface

• Capacity:
  Up to 8TB capacity per disk

• USB Interface:
  2 × USB 2.0 ports

---

General Specifications

• Power Supply:
  48 VDC, 1.88 A

• Power Consumption:
  ≤ 10 W (without PoE enabled)

• Working Temperature:
  -10°C to +55°C (+14°F to +131°F)

• Working Humidity:
  10% to 90%

• Chassis:
  1U chassis

• Dimensions (W × D × H):
  265 × 225 × 48 mm (10.2" × 8.9" × 1.9")

• Weight:
  ≤ 1 kg (2.2 lb)
