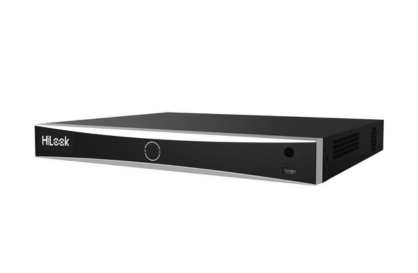

HiLook NVR-232MH-K/16P 32CH NVR, 16x PoE NVR Network Video Recorder

Key Features

• Up to 32-channel IP camera inputs, plug & play with 16 PoE (Power-over-Ethernet) interfaces
• Supports H.265+, H.265, H.264+, and H.264 video formats
• Decoding capacity:
  • 2 channels @ 12 MP
  • 3 channels @ 8 MP
  • 6 channels @ 4 MP
  • 12 channels @ 1080p
• Supports up to 256 Mbps incoming bandwidth



Specification

Video and Audio

• IP Video Input: 32 channels
• Incoming Bandwidth: 256 Mbps
• Outgoing Bandwidth: 160 Mbps
• HDMI Output:
  • 1 channel, supports resolutions:
    • 4K (3840 × 2160) @ 30 Hz
    • 2K (2560 × 1440) @ 60 Hz
    • 1920 × 1080 @ 60 Hz
    • 1600 × 1200 @ 60 Hz
    • 1280 × 1024 @ 60 Hz
    • 1280 × 720 @ 60 Hz
    • 1024 × 768 @ 60 Hz
• VGA Output:
  • 1 channel, supports resolutions:
    • 1920 × 1080 @ 60 Hz
    • 1280 × 1024 @ 60 Hz
    • 1280 × 720 @ 60 Hz
• Video Output Mode: HDMI/VGA independent output
• CVBS Output: Not available
• Audio Output: 1 channel, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
• Two-Way Audio: 1 channel, RCA (Linear, 1 KΩ)

Decoding

• Decoding Format: H.265, H.265+, H.264+, H.264
• Recording Resolution:
  • 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
• Synchronous Playback: 16 channels

Auxiliary Interface

• SATA: 2 SATA interfaces
• Storage Capacity: Up to 10 TB per HDD
• USB Interface:
  • Front Panel: 1 × USB 2.0
  • Rear Panel: 1 × USB 2.0
• Alarm In/Out: 4/1

General

• GUI Language Support:
  • English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz, Brazilian Portuguese, Indonesian

Power & Environmental

• Power Supply: 100 to 240 VAC, 50 to 60 Hz
• Power Consumption: ≤ 15 W (without HDD and PoE off)
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%

Physical Specifications

• Dimensions (W × D × H): 385 mm × 315 mm × 52 mm (15.2" × 12.4" × 2.0")
• Weight: ≤ 3 kg (6.6 lb) (without HDD)

Certifications

• FCC: Part 15 Subpart B, ANSI C63.4-2014
• CE: EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
• Obtained Certifications: CE, FCC, IC, CB, KC, UL, RoHS, REACH, WEEE, RCM, UKCA, LOA, BIS
