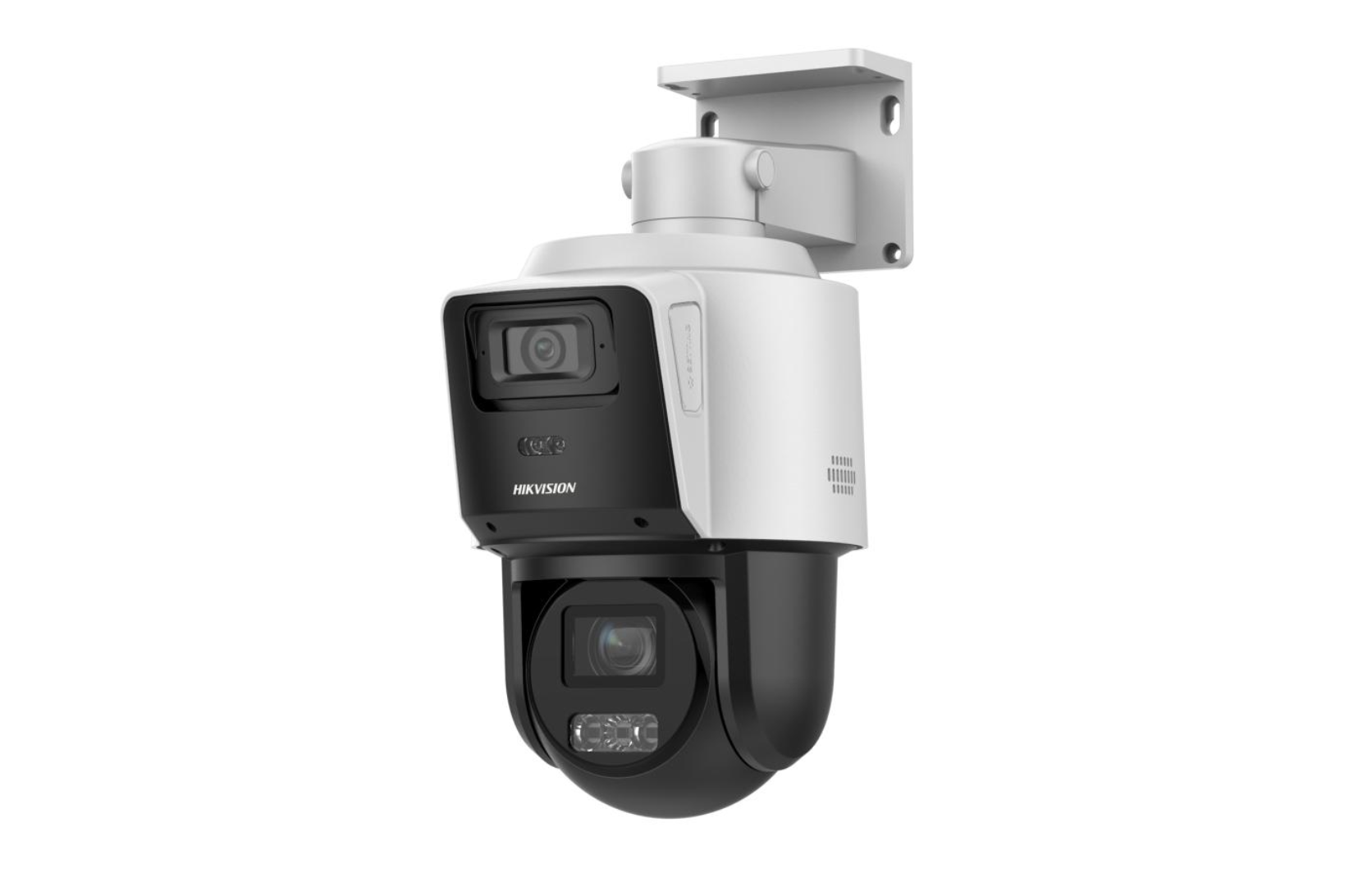

Description
Key Features
- Captures a wide area and detailed close-up views simultaneously
- Dual 4 MP imaging channels
- Powered-by-DarkFighter technology for excellent low-light performance
- 4× optical zoom and 16× digital zoom
- Supports 120 dB WDR, HLC, BLC, 3D DNR and digital defog
- Supports regional exposure and regional focus on the PTZ channel
- Human and vehicle target detection
- Active red and blue strobe lights with audio alarm
- Hybrid IR and white-light illumination on the bullet channel
- Up to 40 m IR illumination on the PTZ channel
- Built-in microphone and speaker
- Supports 12 VDC and PoE+
- MicroSD card storage up to 512 GB
- IP66 weather-resistant protection
- User Manual
Camera
Image Sensor
- Bullet Channel: 1/2.8" Progressive Scan CMOS
- PTZ Channel: 1/2.8" Progressive Scan CMOS
Maximum Resolution
- Bullet Channel: 2560 × 1440
- PTZ Channel: 2560 × 1440
Minimum Illumination
- Bullet Channel:
- Colour: 0.01 Lux at F1.6, AGC On
- B/W: 0.005 Lux at F1.6, AGC On
- 0 Lux with IR
- PTZ Channel:
- Colour: 0.01 Lux at F1.5, AGC On
- B/W: 0.005 Lux at F1.5, AGC On
- 0 Lux with IR
Shutter Speed
1 second to 1/30,000 second
Slow Shutter
Supported
Day/Night
ICR
Zoom
- PTZ Channel: 4× optical zoom and 16× digital zoom
Lens
Focal Length
- Bullet Channel: 2.8 mm
- PTZ Channel: 2.8 mm to 12 mm, 4× optical zoom
Focus
Auto, manual and semi-auto
Zoom Speed
- PTZ Channel: Approximately 3.3 seconds
Field of View
- Bullet Channel:
- Horizontal: 114.9°
- Vertical: 62.4°
- Diagonal: 130.7°
- PTZ Channel:
- Horizontal: 98° to 34.2°
- Vertical: 52° to 19.2°
- Diagonal: 111° to 39°
Aperture
- Bullet Channel: F1.6
- PTZ Channel: F1.5 to F2.9
Illumination
Supplement Light Type
- Bullet Channel: Hybrid IR and white light
- PTZ Channel: IR
Smart Supplement Light
Supported
Supplement Light Range
- Bullet Channel:
- IR Distance: Up to 30 m
- White-Light Distance: Up to 30 m
- PTZ Channel:
- IR Distance: Up to 40 m
PTZ
Pan Range
0° to 350°
Tilt Range
- Bullet Channel: 7° to 17°, manually adjustable
- PTZ Channel: -5° to 90°
Pan Speed
- Configurable: 0.1° to 30° per second
- Preset Speed: 30° per second
Tilt Speed
- Configurable: 0.1° to 30° per second
- Preset Speed: 30° per second
Presets
300
Patrol Scan
8 patrols with up to 32 presets per patrol
Proportional Pan
Supported
Power-Off Memory
Supported
Park Action
Preset and patrol scan
3D Positioning
Supported
PTZ Status Display
Supported
Preset Freezing
Supported
Scheduled Tasks
Dome reboot, preset, patrol scan, dome adjustment and auxiliary output
Video
Main Stream – Bullet and PTZ Channels
- 50 Hz: Up to 15 fps at 2560 × 1440, 1920 × 1080 or 1280 × 720
- 60 Hz: Up to 15 fps at 2560 × 1440, 1920 × 1080 or 1280 × 720
Sub-Stream – Bullet and PTZ Channels
- 50 Hz: Up to 15 fps at 640 × 480 or 640 × 360
- 60 Hz: Up to 15 fps at 640 × 480 or 640 × 360
Third Stream – Bullet and PTZ Channels
- 50 Hz: Up to 15 fps at 1280 × 720, 640 × 480 or 640 × 360
- 60 Hz: Up to 15 fps at 1280 × 720, 640 × 480 or 640 × 360
Video Compression
H.265, H.264 and MJPEG
Video Bit Rate
32 Kbps to 16,384 Kbps
H.264 Profiles
Baseline Profile, Main Profile and High Profile
H.265 Profile
Main Profile
Scalable Video Coding
Supported
Region of Interest
1 fixed region for the main stream
Audio
Built-In Audio
- 1 built-in microphone
- 1 built-in speaker
Audio Compression
G.711, G.722.1, G.726, MP2L2, PCM, MP3 and AAC
Audio Bit Rates
- MP2L2: 32 Kbps to 160 Kbps
- AAC: 16 Kbps, 32 Kbps or 64 Kbps
- MP3: 8 Kbps to 160 Kbps
Audio Sampling Rate
- MP2L2: 16 kHz
- AAC-LC: 16 kHz
- PCM: 8 kHz or 16 kHz
- MP3: 8 kHz or 16 kHz
Environmental Noise Filtering
Supported
Image Settings
Brightness, contrast, saturation and sharpness
Wide Dynamic Range
120 dB
Signal-to-Noise Ratio
≥52 dB
Image Enhancement
BLC, HLC and 3D DNR
Defog
Digital defog
Day/Night Switching
Day, night, auto and scheduled switching
Privacy Masks
- Bullet Channel: 24 programmable polygon privacy masks
- PTZ Channel: 24 programmable polygon privacy masks
Regional Focus
- Bullet Channel: Not supported
- PTZ Channel: Supported
Regional Exposure
- Bullet Channel: Not supported
- PTZ Channel: Supported
Image Parameter Switching
Supported
Smart Detection
Basic Events
Motion detection, video tampering alarm and exceptions
Smart Events
- Line crossing detection
- Intrusion detection
- Human and vehicle target detection
Smart Event Notes
- Line crossing and intrusion detection can operate on both lenses simultaneously
- Supports up to 60 targets per minute across both lenses
- Motion detection must be disabled when using line crossing or intrusion detection
Event Linkage – Bullet Channel
Upload to FTP, NAS or memory card, notify surveillance centre, send email, trigger alarm output and trigger recording
Event Linkage – PTZ Channel
Upload to FTP, NAS or memory card, notify surveillance centre, send email, trigger alarm output, trigger recording and activate PTZ actions such as presets or patrol scans
Network
Ethernet Interface
1 × RJ45 10/100 Mbps self-adaptive Ethernet port
Protocols
TCP/IP, UDP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP, FTP, SNMP, PPPoE, QoS, UPnP, Bonjour, IGMP, ICMP, WebSocket, WebSockets, 802.1X and IPv4/IPv6
API and Integration
ONVIF Profiles S, G and T, ISAPI, SDK and ISUP
Network Storage
NAS using NFS or SMB/CIFS and ANR
Simultaneous Live View
Up to 6 channels
Users
Up to 32 users
Security
802.1X authenticated access, MAC address binding, authenticated usernames and passwords, IP address filtering and HTTPS encryption
Client Software
iVMS-4200 and Hik-Connect
Web Browser Support
Internet Explorer 8+, Chrome 31 to 44, Firefox 30 to 51 and Safari 8.0+
Storage and Interface
On-Board Storage
Built-in MicroSD, SDHC and SDXC card slot supporting up to 512 GB
Reset Button
Supported
Power and Construction
Power Supply
- 12 VDC
- PoE+
- Maximum Power Consumption: 13.5 W
Operating Conditions
- Temperature: -30°C to 50°C
- Humidity: 95% or less, non-condensing
Demist
Heating element for glass demisting
Material
Polycarbonate
Dimensions
311.5 × 223.5 × 156 mm
Weight
Approximately 1.37 kg
Protection
- IP66 weather-resistant rating
- Surge protection
- Voltage transient protection
