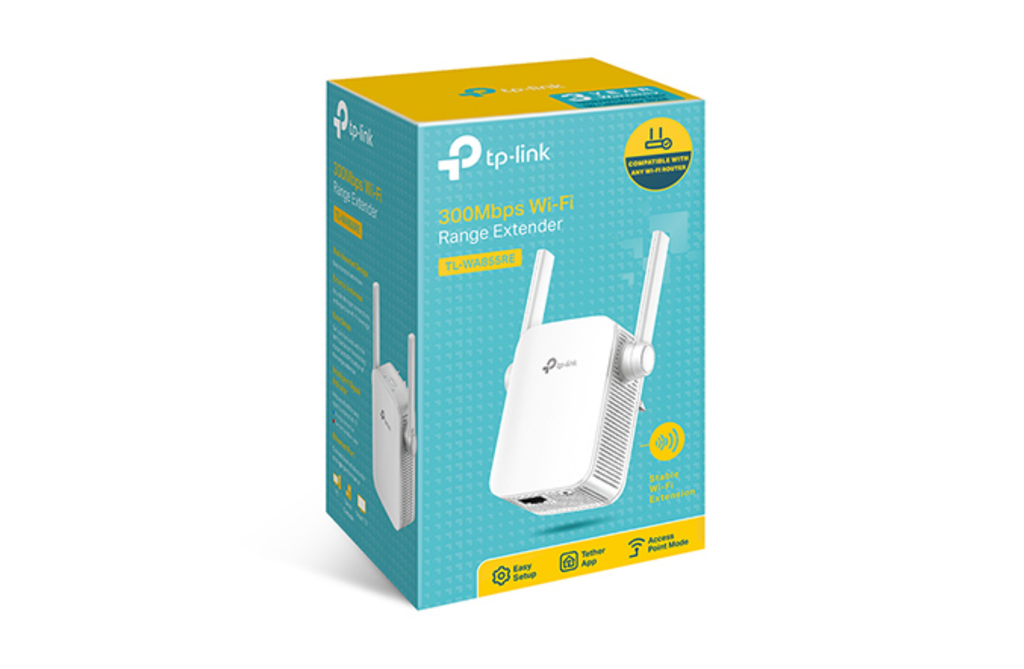

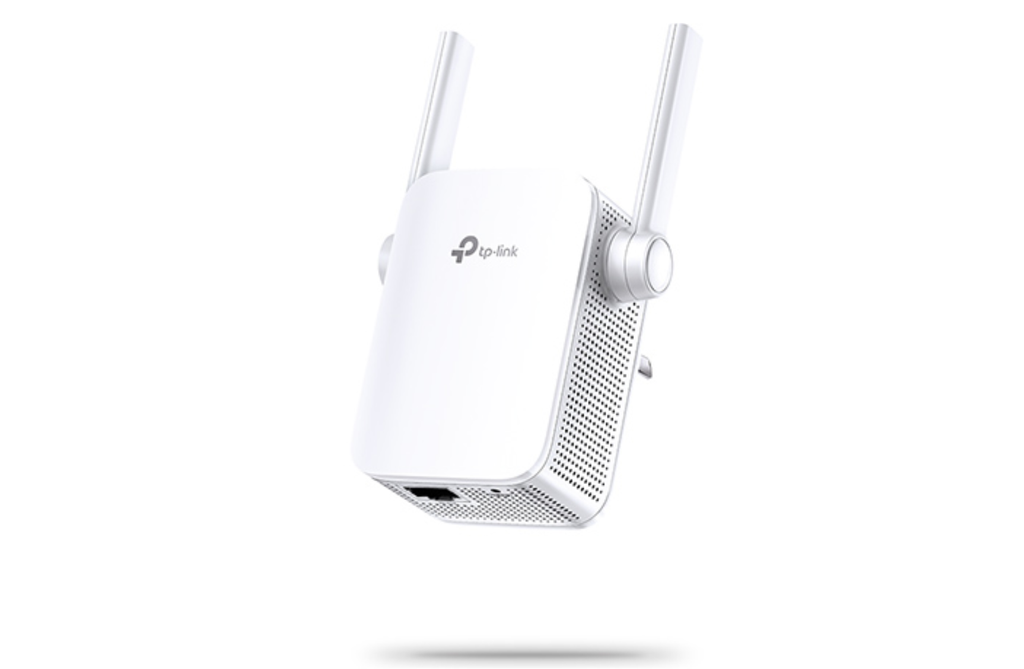

TP-Link TL-WA855RE 300Mbps Wi-Fi Range Extender

Key Features

• Extends your existing Wi-Fi coverage for fast and reliable wireless connectivity
• Delivers wireless speeds of up to 300Mbps on the 2.4GHz band
• Two external antennas provide stronger and more stable Wi-Fi coverage
• Range Extender mode helps eliminate Wi-Fi dead zones
• Access Point mode creates a new wireless access point from a wired network
• One 10/100Mbps Ethernet port supports wired network devices
• Easily expands coverage using the Range Extender button
• Power Schedule allows automatic operating times for improved energy efficiency
• Compatible with virtually any Wi-Fi router

Wireless

• Working Modes: Range Extender and Access Point
• Wireless Standards: IEEE 802.11n, IEEE 802.11g and IEEE 802.11b
• Frequency: 2.4GHz to 2.4835GHz
• Transmission Power: Less than 20dBm EIRP

Wireless Speeds

• IEEE 802.11n: Up to 300Mbps
• IEEE 802.11g: Up to 54Mbps
• IEEE 802.11b: Up to 11Mbps

Wireless Functions

• Enable or disable wireless radio
• Access control
• LED control
• Power scheduling
• Adjustable Wi-Fi coverage

Wireless Security

• 64-bit, 128-bit and 152-bit WEP
• WPA-PSK
• WPA2-PSK

Reception Sensitivity

• 270Mbps: Less than -68dBm
• 130Mbps: Less than -68dBm
• 108Mbps: Less than -68dBm
• 54Mbps: Less than -68dBm
• 11Mbps: Less than -68dBm
• 6Mbps: Less than -68dBm
• 1Mbps: Less than -68dBm

Hardware

• Plug Type: Australian
• Network Interface: 1 × 10/100Mbps Ethernet port (RJ45)
• Buttons: WPS button and reset button
• Antennas: 2 external antennas
• Input Power: 100–240V AC, 50/60Hz
• Maximum Power Consumption: 3.6W
• Dimensions: 80 × 77.8 × 77.3mm

System Requirements

• Microsoft Windows 98SE, NT, 2000, XP, Vista, 7, 8, 8.1 or 10
• macOS
• NetWare
• UNIX
• Linux

Environmental Conditions

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90%, non-condensing
• Storage Humidity: 5% to 90%, non-condensing

Package Contents

• TP-Link TL-WA855RE 300Mbps Wi-Fi Range Extender
• Quick Installation Guide

Certification

• CE
• RoHS
