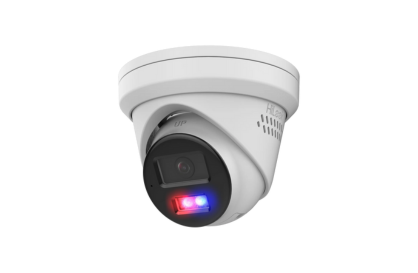

HiLook IPC-T289H-MU/SL HILOOK 8MP ALL-IN-ONE FIXED CAMERA

• High quality imaging with 8 MP resolution
• Human and vehicle classification based on deep learning
• Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
• Built-in arrayed dual-microphone for real-time high quality audio security
• Clear imaging against strong back light due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Water and dust resistant (IP67)
• Active red and blue flashing light and audio alarm to warn intruders off
• Datasheet

Camera Specifications

Camera

• Image Sensor: 1/2.8" Progressive Scan CMOS

• Max. Resolution: 3840 × 2160

• Min. Illumination:

  • Color: 0.005 Lux @ (F1.6, AGC ON)

  • 0 Lux with light

• Shutter Time: 1/3 s to 1/100,000 s

• Day & Night: IR cut filter

• Angle Adjustment:

  • Pan: 0° to 360°

  • Tilt: 0° to 75°

  • Rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens, 2.8 mm and 4 mm optional

• Focal Length & FOV:

  • 2.8 mm: H 108°, V 59°, D 127°

  • 4 mm: H 88°, V 44°, D 105°

• Lens Mount: M12

• Iris Type: Fixed

• Aperture: F1.6

• Depth of Field:

  • 2.8 mm: 1.7 m to ∞

  • 4 mm: 2.6 m to ∞

DORI (Detect, Observe, Recognize, Identify)

• 2.8 mm: D: 84 m, O: 33 m, R: 16 m, I: 8 m

• 4 mm: D: 117 m, O: 46 m, R: 23 m, I: 11 m

Illuminator

• Supplement Light Type: IR, White Light

• Range: Up to 30 m

• Smart Supplement Light: Yes

• IR Wavelength: 850 nm

Video

• Main Stream:

  • 50 Hz: 20 fps (3840 × 2160), 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  • 60 Hz: 20 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream:

  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream:

  • 50/60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  • Supported under certain settings

• Video Compression:

  • Main: H.265/H.264/H.264+/H.265+

  • Sub: H.265/H.264/MJPEG

  • Third: H.265/H.264

• Video Bit Rate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline, Main, High Profile

• H.265 Type: Main Profile

• SVC: H.264 and H.265 encoding

• Bit Rate Control: CBR, VBR

• ROI: 1 fixed region for main and sub-stream

• Target Cropping: Yes

Audio

• Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

• Bit Rate:

  • G.711: 64 Kbps

  • G.722.1 / G.726: 16 Kbps

  • MP2L2: 32–192 Kbps

  • MP3: 8–320 Kbps

  • AAC-LC: 16–64 Kbps

• Sampling Rate: 8/16/32/48 kHz

• Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTSP, NTP, UPnP, SMTP, SNMP, etc.

• Simultaneous Live View: Up to 6 channels

• API Support: ONVIF (Profiles S & G), ISAPI, SDK, ISUP

• Security: Password protection, HTTPS, IP filtering, audit logs, TLS 1.1/1.2/1.3

• Users: Up to 32 users (Admin, Operator, User roles)

• Clients: iVMS-4200, Hik-Connect, Hik-Central

• Network Storage: NAS (NFS, SMB/CIFS), ANR, encrypted & health-checked microSD

• Browser Support: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+


• Parameters Switch: Yes

• Day/Night Switch: Day, Night, Auto, Schedule

• WDR: 120 dB

• SNR: ≥ 52 dB

• Enhancement: BLC, HLC, 3D DNR

• Privacy Mask: Up to 8 programmable polygon zones

Interface

• Ethernet: 1× RJ45 (10/100 Mbps)

• On-Board Storage: microSD/SDHC/SDXC, up to 512 GB

• Reset Key: Yes

• Speaker: Built-in, max 2 W, 110 dB at 10 cm

• Microphone: Built-in dual-mic array

Event Features

• Basic Events:

  • Motion detection (with human/vehicle target filtering)

  • Video tampering

  • Exceptions

• Linkage Actions:

  • FTP/NAS/upload

  • Notify center, send email

  • Trigger recording/capture, audio warning, strobe

• Deep Learning:

  • Perimeter protection (line crossing, intrusion with human/vehicle detection)

General

• Power:

  • 12 VDC ±25%, 1.25 A, max. 15 W

  • PoE (IEEE 802.3at, Class 4), max. 18 W

• Material: Metal

• Dimensions: Ø127.3 × 96.3 mm (Ø5" × 3.8")

• Package Size: 150 × 150 × 141 mm (5.9" × 5.5" × 5.5")

• Weight: 590 g (1.1 lb), with package: 820 g (1.7 lb)

Environmental

• Operating Temp: -30°C to 60°C (-22°F to 140°F), <95% RH (non-condensing)

• Storage Temp: -30°C to 60°C (-22°F to 140°F), <95% RH (non-condensing)

Other Features

• Languages: 33 supported (incl. English, Russian, German, Korean, Arabic, etc.)

• Functions: Heartbeat, mirror, flash log, pixel counter, email password reset

• Flashing Light:

  • SRB Models: Red & Blue

  • Others: White

Approvals & Certifications

• EMC: CE, RCM, IC, KC

• Safety: CB, CE-LVD, LOA

• Environment: RoHS, WEEE, REACH

• Protection: IP67 (IEC 60529-2013)
