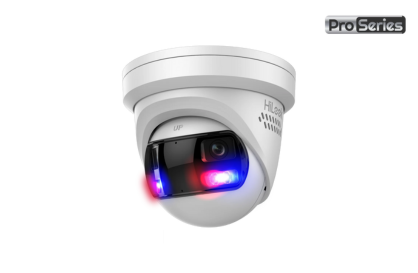

IPC-T289PH-MU/SL 8MP Dual Lens Stitched Wide Angle Smart Hybrid Light Fixed Turret Network Camera

• High quality imaging with 8 MP resolution
• Support Person and Vehicle Detection
• Smart Hybrid Light: advanced technology with long range
• Efficient H.265+ compression technology
• Support on-board storage up to 512 GB (SD card slot)
• Provide real-time security via built-in two-way audio
• Water and dust resistant (IP67)
• 180° Field of view
• Active strobe light and audio alarm to warn intruders off
• Datasheet

Camera


• Image Sensor: 1/2.4" Progressive Scan CMOS

• Max. Resolution: 4256 × 1888

• Min. Illumination:

  • Color: 0.005 Lux @ (F1.6, AGC ON)

  • 0 Lux with light

• Shutter Time: 1 s to 1/100,000 s

• Day & Night: IR cut filter

• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens, 2 mm

• Focal Length & FOV:

  • 2 mm

  • Horizontal FOV: 180°

  • Vertical FOV: 77°

• Lens Mount: M12

• Iris Type: Fixed

• Aperture: F1.6

DORI

• 2 mm:

  • D (Detect): 50 m

  • O (Observe): 20 m

  • R (Recognize): 10 m

  • I (Identify): 5 m

Illuminator

• Supplement Light Type: IR, White Light

• Supplement Light Range: Up to 30 m

• Smart Supplement Light: Yes

• IR Wavelength: 850 nm

Video

• Main Stream:

  • 50 Hz: 20 fps (4256 × 1888)

  • 60 Hz: 20 fps (4256 × 1888)

• Sub-Stream:

  • 50 Hz: 20 fps (1200 × 536, 960 × 432)

  • 60 Hz: 20 fps (1200 × 536, 960 × 432)

• Video Compression:

  • Main: H.265+/H.265/H.264+/H.264

  • Sub: H.265/H.264/MJPEG

• Video Bit Rate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline/Main/High Profile

• H.265 Type: Main Profile

• Bit Rate Control: CBR, VBR

• ROI: 1 fixed region (main stream)

• Scalable Video Coding (SVC): H.264 & H.265

Audio

• Type: Mono

• Sampling Rate: 8/16 kHz

• Noise Filtering: Yes

• Compression: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC

• Bit Rate:

  • G.711: 64 Kbps

  • G.722.1/G.726: 16 Kbps

  • MP2L2: 32 to 160 Kbps

  • AAC-LC: 16 to 64 Kbps

Network

• Security:

  • Password protection

  • Watermark

  • MAC authentication

  • Digest/WSSE authentication

  • Security audit log

• Simultaneous Live View: Up to 6 channels

• API: ONVIF (Profiles S/T/G), ISAPI, SDK

• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4/IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS

• User/Host: Up to 32 users; 3 levels: Administrator, Operator, User

• Client: iVMS-4200, Hik-Connect

• Web Browser:

  • Plug-in required: IE 11

  • Plug-in free/local: Chrome 80+, Firefox 80+, Edge 89+

Image Features

• WDR: 120 dB

• SNR: ≥ 52 dB

• Day/Night Switch: Day, Night, Auto, Schedule

• Enhancement: BLC, HLC, 3D DNR

• Settings: Rotate, saturation, brightness, contrast, sharpness, gain, white balance (adjustable via software/browser)

• Privacy Mask: 4 programmable polygon masks

Interface

• Ethernet: 1 × RJ45 10M/100M self-adaptive

• On-Board Storage: microSD/microSDHC/microSDXC, up to 512 GB

• Built-in Microphone: Yes

• Built-in Speaker: Yes, max. 2 W, 97 dB @ 10 cm

• Reset Key: Yes

Event

• Basic Events:

  • Motion detection (human & vehicle classification)

  • Video tampering

  • Exception alarms

• Linkage Methods:

  • FTP upload

  • Memory card recording

  • Surveillance center notification

  • Email

  • Trigger capture/recording

  • Audible warning

  • Strobe light flashing

General

• Power:

  • 12 VDC ± 25%, 0.83 A, Max. 10 W

  • PoE (802.3af, Class 3): Max. 11.5 W

• Material: Base: Metal; Cover: Plastic

• Dimensions: Ø138.3 × 115.4 mm (Ø5.4" × 4.5")

• Package Dimensions: 170 × 170 × 150 mm (6.7" × 6.7" × 5.9")

• Weight: 790 g (1.7 lb)

• With Packaging: 1100 g (2.4 lb)

• Operating/Storage Temp: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95% (non-condensing)

• Languages Supported:
  English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian

• General Functions: Heartbeat, anti-banding, password protection, email-based password reset

Flashing Light

• /SRB model: Red & Blue Light

• /SL model: White Light

Certifications

• EMC:

  • CE-EMC: EN 55032:2015+A1:2020

  • EN 50130-4:2011+A1:2014

  • EN IEC 61000-3-2:2019+A1:2021

  • EN 61000-3-3:2013+A1:2019+A2:2021

  • IC: ICES-003 Issue 7

  • KC: KN32:2015, KN35:2015

• Safety:

  • CB: IEC 62368-1:2014+A11

  • BIS: IS 13252 (Part 1): 2010 / IEC 60950-1:2005

• Environment:

  • CE-RoHS (2011/65/EU)

  • WEEE (2012/19/EU)

  • REACH (EC No. 1907/2006)

• Protection:

  • IP67 (IEC 60529-2013)
