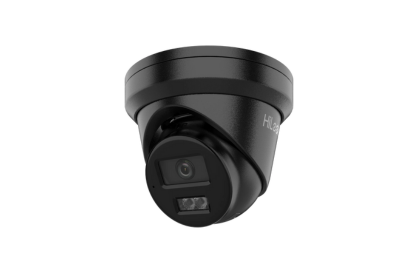

IPC-T361H-MU Black 6 MP AI Fixed Turret Network Camera

• High quality imaging with 6 MP resolution
• human and vehicle classification based on deep learning
• Built-in arrayed dual-microphone for real-time high quality audio security
• Clear imaging against strong back light due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Water and dust resistant (IP67)
• Datasheet

Camera Specifications

Camera

• Image Sensor: 1/2.4" Progressive Scan CMOS

• Max. Resolution: 3200 × 1800

• Min. Illumination:

  • Color: 0.005 Lux @ (F1.6, AGC ON)

  • 0 Lux with IR light

• Shutter Time: 1/3 s to 1/100,000 s

• Day & Night: IR cut filter

• Angle Adjustment:

  • Pan: 0° to 360°

  • Tilt: 0° to 75°

  • Rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens (2.8 mm and 4 mm optional)

• Focal Length & Field of View (FOV):

  • 2.8 mm:

    • Horizontal FOV: 105°

    • Vertical FOV: 55°

    • Diagonal FOV: 127°

  • 4 mm:

    • Horizontal FOV: 78°

    • Vertical FOV: 38°

    • Diagonal FOV: 96°

• Lens Mount: M12

• Iris Type: Fixed

• Aperture: F1.6

• Depth of Field:

  • 2.8 mm: 1.8 m to ∞

  • 4 mm: 3.1 m to ∞

DORI (Detect, Observe, Recognize, Identify)

• 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m

• 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m

Illuminator

• Supplement Light Type: IR

• Range: Up to 30 m

• Smart Supplement Light: Yes

• IR Wavelength: 850 nm

Video

• Main Stream:

  • 50 Hz: 25 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)

  • 60 Hz: 30 fps (same resolutions)

• Sub-Stream:

  • 50 Hz: 25 fps (1280×720, 640×480, 640×360)

  • 60 Hz: 30 fps (same resolutions)

• Third Stream:

  • 50/60 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360)

  • Supported under certain settings

• Compression:

  • Main: H.265/H.264/H.264+/H.265+

  • Sub: H.265/H.264/MJPEG

  • Third: H.265/H.264

• Video Bit Rate: 32 Kbps to 16 Mbps

• H.264 Profiles: Baseline, Main, High

• H.265 Profile: Main

• SVC: H.264 and H.265

• Bit Rate Control: CBR, VBR

• ROI: 1 fixed region (main and sub-stream)

• Target Cropping: Yes

Audio (-2U Model Only)

• Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

• Audio Bit Rate:

  • 64 Kbps (G.711)

  • 16 Kbps (G.722.1 / G.726)

  • 32–160 Kbps (MP2L2)

  • 8–320 Kbps (MP3)

  • 16–64 Kbps (AAC-LC)

• Sampling Rate: 8 kHz / 16 kHz / 32 kHz / 48 kHz

• Noise Filtering: Yes

• Built-in Mic: Arrayed dual-microphone

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket(s)

• Simultaneous Live View: Up to 6 channels

• API: ONVIF (Profile S, G), ISAPI, SDK, ISUP

• Security:

  • Password protection, IP filter, HTTPS, digest/authentication, TLS 1.1–1.3

  • WSSE & digest for ONVIF

  • Security audit log

• Users: Up to 32 users (Admin, Operator, User levels)

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Network Storage:

  • NAS (NFS, SMB/CIFS), ANR

  • Supports encrypted, health-monitored Hikvision memory cards

Web Interface

• Live View:

  • Plug-in: IE 11

  • Plug-in Free: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

• Local Service: Chrome, Firefox, Edge, Safari (same versions as above)

Image Features

• Image Parameter Switch: Yes

• Day/Night Switch: Day, Night, Auto, Schedule

• WDR: 120 dB

• SNR: ≥ 52 dB

• Enhancement: BLC, HLC, 3D DNR

• Privacy Masking: 8 programmable polygon regions

Interface

• Ethernet: 1 × RJ45 10M/100M

• On-Board Storage: microSD/microSDHC/microSDXC, up to 512 GB

• Reset Key: Yes

Events

• Basic Events:

  • Motion detection (with human/vehicle filtering)

  • Video tampering, exception

• Event Linkage:

  • Upload to FTP/NAS/SD card

  • Notify surveillance center, send email

  • Trigger recording/capture

• AI Features (Perimeter Protection):

  • Line crossing, intrusion

  • Alarm filtering for human/vehicle

General

• Power:

  • 12 VDC ±25%, 0.66 A, Max. 8 W (Ø5.5 mm, reverse polarity protected)

  • PoE (IEEE 802.3af, Class 3), Max. 9.5 W

• Material: Metal

• Dimensions: Ø127.3 mm × 96.3 mm (Ø5.0" × 3.8")

• Package Dimensions: 150 mm × 150 mm × 141 mm (5.9" × 5.5" × 5.5")

• Weight:

  • Camera: 515 g (1.1 lb.)

  • With Package: 755 g (1.7 lb.)

• Storage/Operating Conditions:

  • Temp: -30 °C to 60 °C (-22 °F to 140 °F)

  • Humidity: ≤ 95% (non-condensing)

• Languages: 33 languages supported (incl. English, Spanish, French, Chinese, etc.)

• General Functions: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding

Compliance & Approvals

EMC

• CE-EMC: EN 55032, EN 50130-4, EN IEC 61000-3 series

• RCM: AS/NZS CISPR 32

• IC: ICES-003

• KC: KN32, KN35

Safety

• CB: IEC 62368-1

• CE-LVD: EN 62368-1

• BIS: IS 13252 (IEC 60950-1)

• LOA: IEC/EN 60950-1

Environmental

• CE-RoHS: 2011/65/EU

• WEEE: 2012/19/EU

• REACH: EC No 1907/2006

Ingress Protection

• IP67 (IEC 60529-2013)
